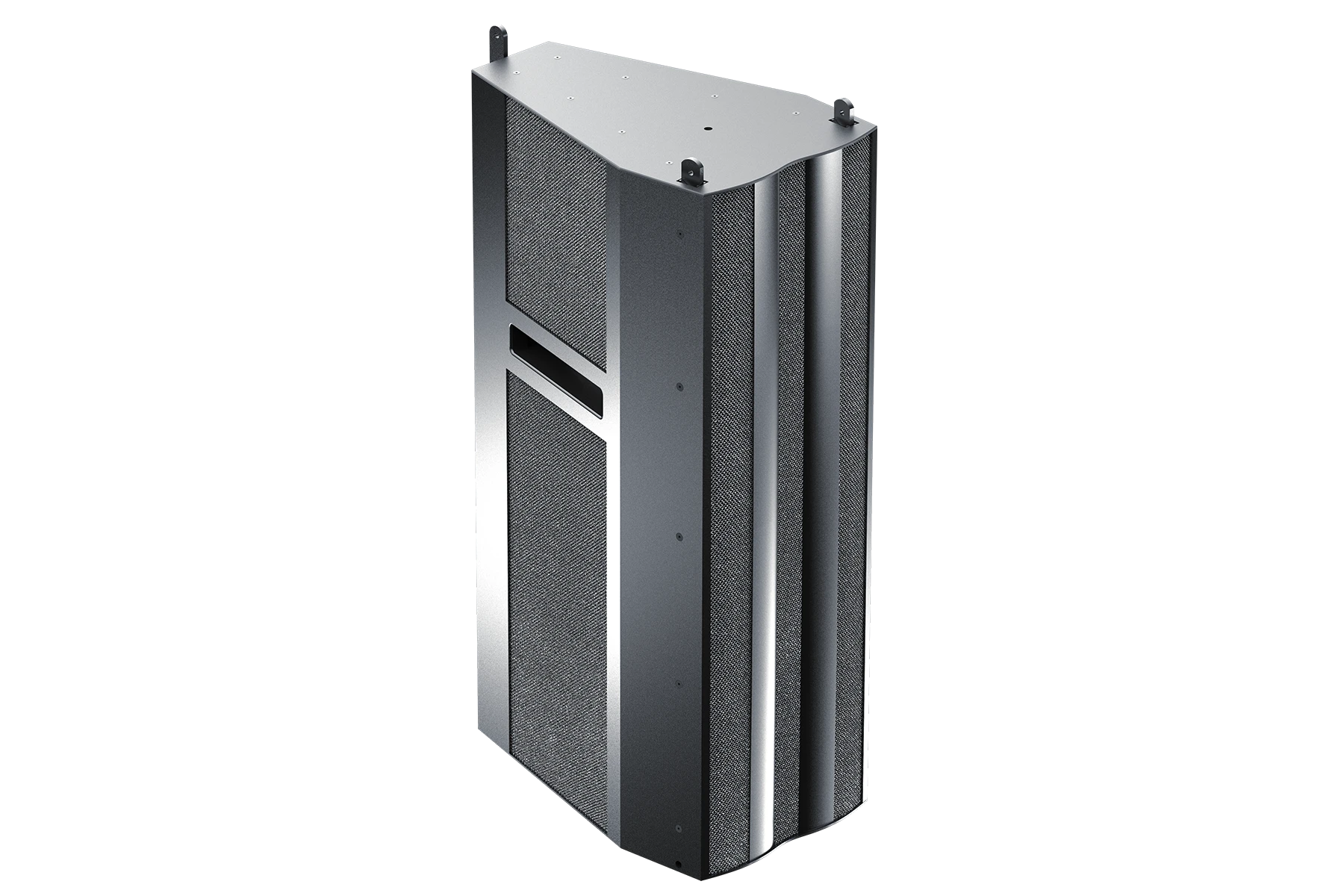

A 470 Wide

A 470 Wide

Learn more

Acoustical Specifications
Amplitude linearity (± 3 dB)65 Hz - 20000 Hz
Operating frequency range (-6 dB)58 Hz - 20000 Hz
Cut-off frequencies (-10 dB)52 Hz - 20000 Hz
Number of ways2
Maximum SPL LF128 dB
Maximum SPL MHF130 dB
Horizontal coverage100°
Vertical coverage
Technical Specifications
Nominal impedance LF4 Ω
Nominal impedance MHF8 Ω
AES power handling LF600 W
AES power handling MHF250 W
Peak power handling LF1200 W
Peak power handling MHF500 W
Transducer (LF)4 x 6.5"
Transducer (HF)4 x 8" planar ribbons
Enclosure typePassive Radiators (6 x 8")
Crossover typeActive (FIR)
Connector and Button Specifications
Input connectors (Analog)1 x speakON NL4MP
Physical Specifications
Height838.0 mm
Width282.0 mm
Depth470.0 mm
Weight34.0 kg
Handles2
RiggingCompatible with A 470 Bump
Standard colour codes for cabinet9005/9010/1013/7040/7030/5011
Standard colour codes for fabric9005/9006/9010/1035/1036
