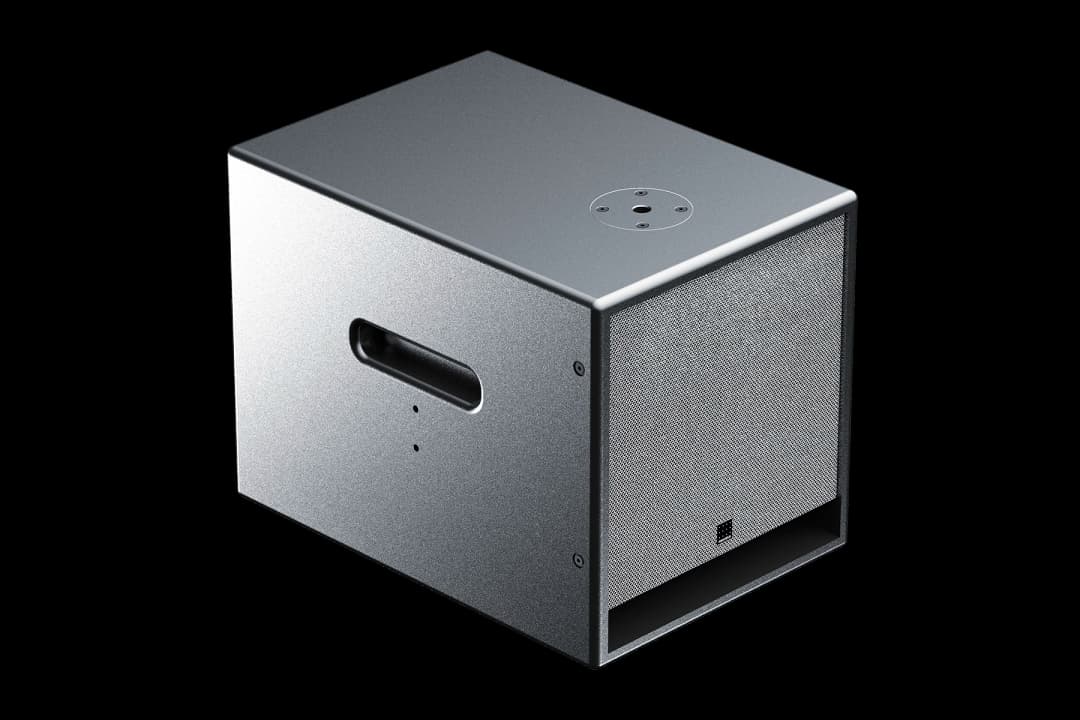

ML 12 D

ML 12 D

Learn more

Acoustical Specifications
Amplitude linearity (± 3 dB): 45 Hz - 350 Hz
Operating frequency range (-6 dB): 40 Hz - 350 Hz
Cut-off frequencies (-10 dB): 35 Hz - 350 Hz
Number of ways: 1
Sensitivity: 97 dB
Maximum SPL: 127 dB
Horizontal coverage: 360°
Vertical coverage: 360°
Technical Specifications
Nominal impedance: 8 Ω
AES power handling: 900 W
Program power handling: 1800 W
Peak power handling: 2500 W
Transducer (LF): 1 x 12"
Enclosure type: Bass-Reflex
Crossover type: DSP
Loudspeaker processing specifications
Crossover: Multiple filter types (Butterworth, Linkwitz-Riley, Bell, High Shelf, Low Shelf, Notch, All Pass, Band Pass, High Pass, Low Pass) up to 24 dB / Oct.
Control and monitoring interface: Full configuration and real-time monitoring via PC, Mac and iPad
Connector and Button Specifications
Input connectors (Analog): 1 x Male XLR (Pin 2+, Pin 3-), 1 x Female XLR (Pin 2+, Pin 3-)
Input connectors (AES/EBU): 1 x Male XLR (Pin 2+, Pin 3-), 1 x Female XLR (Pin 2+, Pin 3-)
Input connectors (Dante): 2 x RJ45 etherCON
Mains connectors: 1 x IEC 16 A
Buttons: Power, Up, Down
Encoder: Adjust, Set
Physical Specifications
Height: 415.0 mm
Width: 388.0 mm
Depth: 549.0 mm
Weight: 31.0 kg
Handles: 2
Rigging: 4 x M8 threaded inserts for optional U-Bracket
Rigging: 1 x screw receptacle for satellite pole
Standard colour codes for cabinet: 9005/9010/1013/7040/7030/5011
Standard colour codes for fabric: 9005/9006/9010/1035/1036
