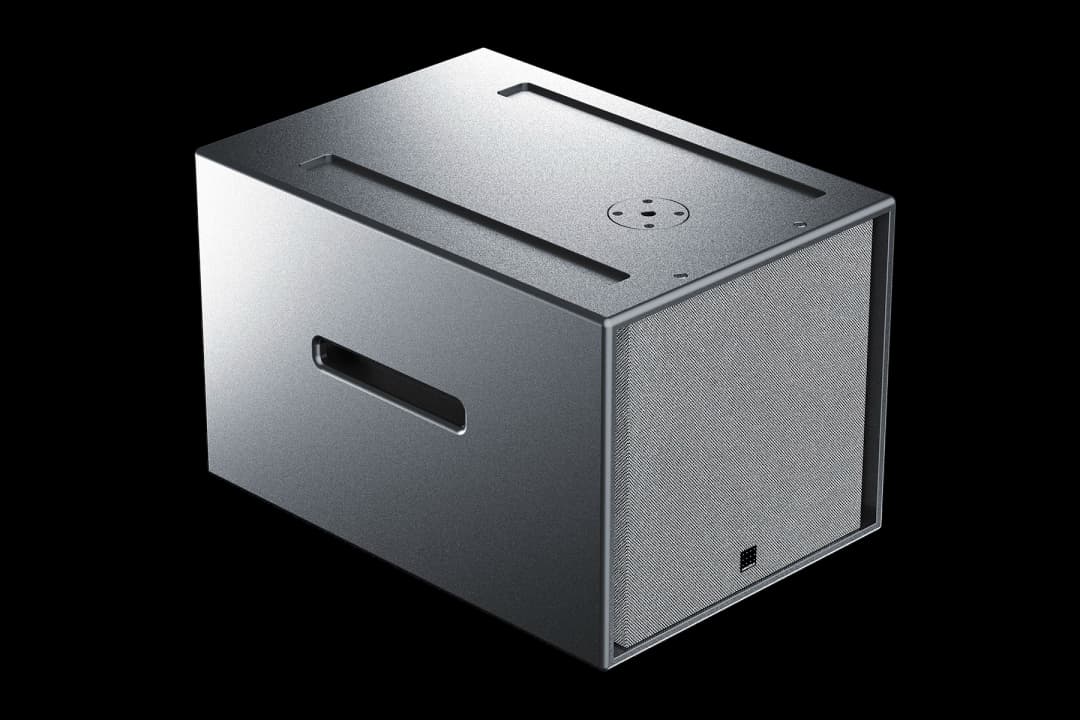

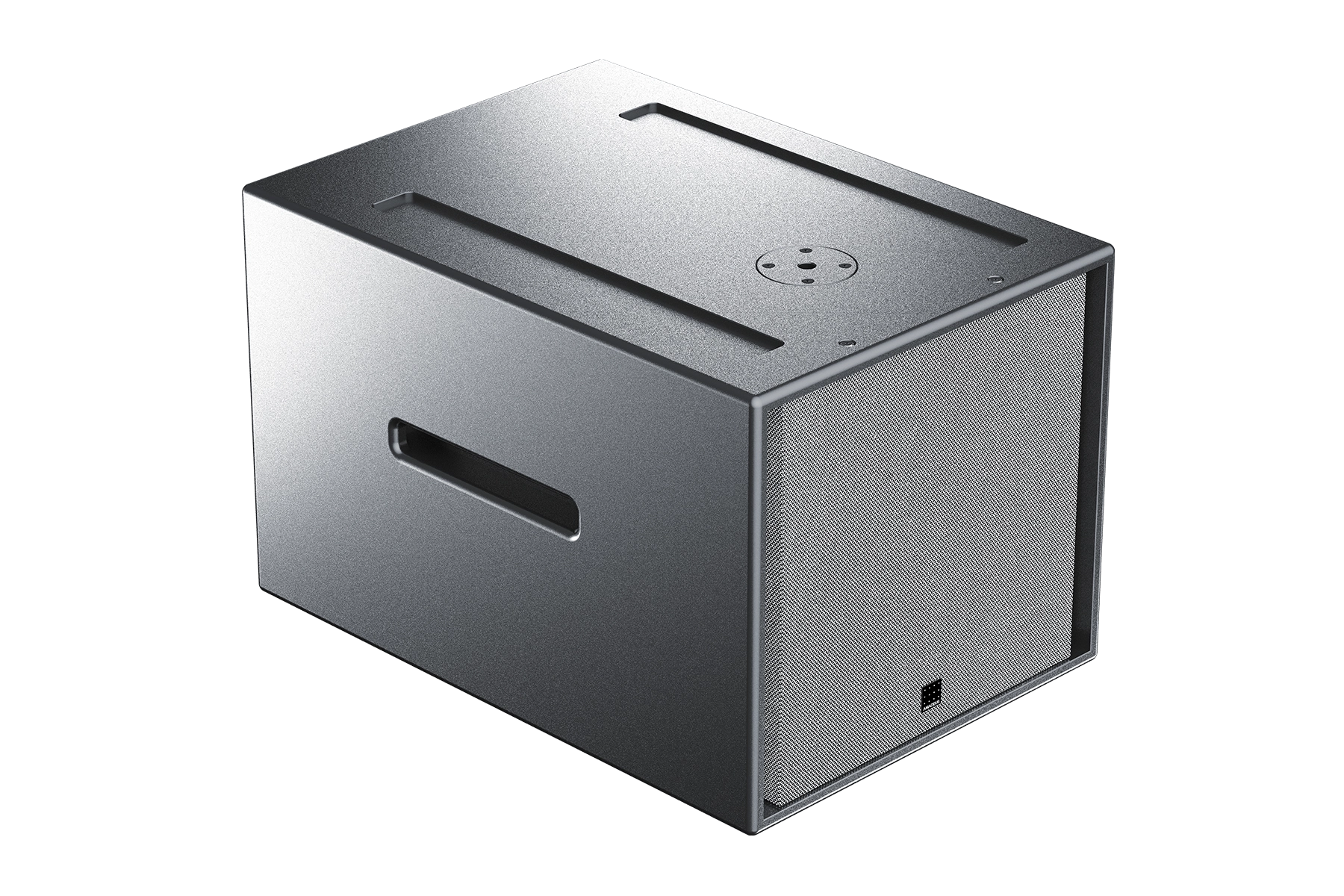

ML 18 D
Learn more
Acoustical Specifications
| Amplitude linearity (± 3 dB) | 38 Hz - 350 Hz |
| Operating frequency range (-6 dB) | 35 Hz - 350 Hz |
| Cut-off frequencies (-10 dB) | 32 Hz - 350 Hz |
| Number of ways | 1 |
| Sensitivity | 100 dB |
| Maximum SPL | 133 dB |
| Horizontal coverage | 360° |
| Vertical coverage | 360° |
| Presets | 99 user-definable presets |
Technical Specifications
| Nominal impedance | 8 Ω |
| AES power handling | 1000 W |
| Program power handling | 2000 W |
| Peak power handling | 2800 W |
| Transducer (LF) | 1 x 18" |
| Enclosure type | Bass-Reflex |
| Crossover type | DSP |
Loudspeaker processing specifications
| Crossover | Multiple filter types (Butterworth, Linkwitz-Riley, Bell, High Shelf, Low Shelf, Notch, All Pass, Band Pass, High Pass, Low Pass) up to 24 dB / Oct. |
| Control and monitoring interface | Full configuration and real-time monitoring via PC, Mac and iPad |
Connector and Button Specifications
| Input connectors (Analog) | 1 x Male XLR (Pin 2+, Pin 3-), 1 x Female XLR (Pin 2+, Pin 3-) |
| Input connectors (AES/EBU) | 1 x Male XLR (Pin 2+, Pin 3-), 1 x Female XLR (Pin 2+, Pin 3-) |
| Input connectors (Dante) | 2 x RJ45 etherCON |
| Mains connectors | 1 x IEC 16 A |
| Buttons | Power, Up, Down |
| Encoder | Adjust, Set |
Physical Specifications
| Height | 504.0 mm |
| Width | 553.0 mm |
| Depth | 785.0 mm |
| Weight | 49.0 kg |
| Handles | 2 |
| Rigging | 1 x screw receptacle for satellite pole |
| Standard colour codes for cabinet | 9005/9010/1013/7040/7030/5011 |
| Standard colour codes for fabric | 9005/9006/9010/1035/1036 |
