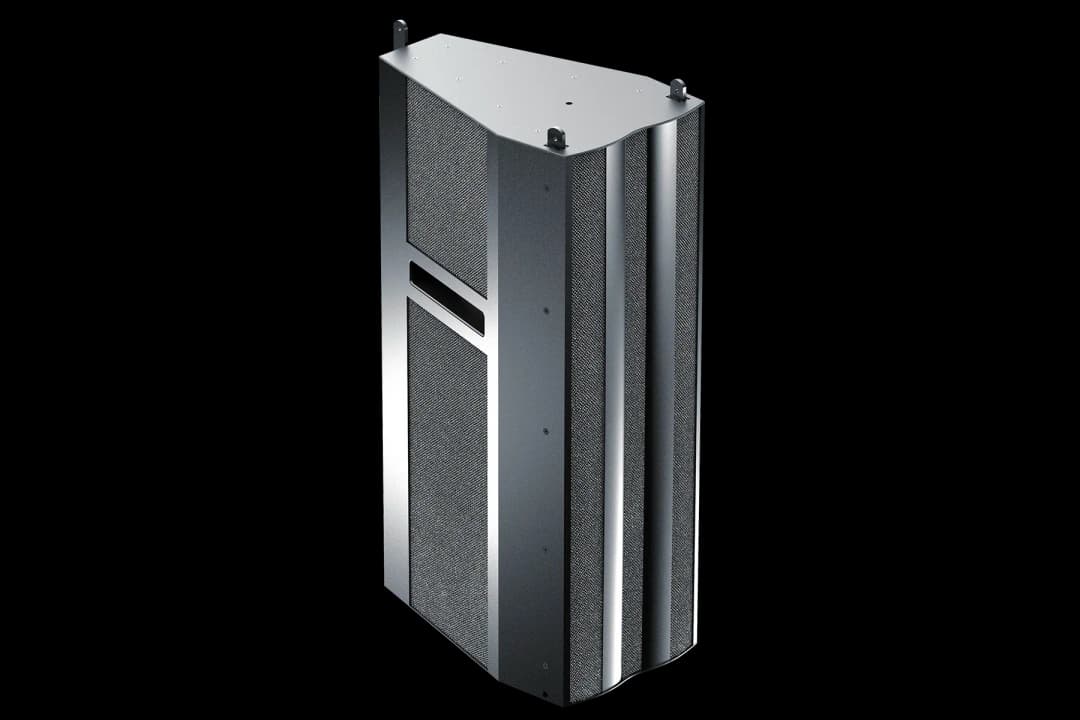

A 470 Straight
High-fidelity line source module (4 x 6.5’’ LF ; 4 x MHF Planar Ribbon ; 6 x 8’’ PR) featuring a straight enclosure angle
Learn more
| Acoustical Specifications | Amplitude Linearity:65 Hz - 20000 Hz Operating Frequency Range:58 Hz - 20000 Hz Cut-off Frequencies:52 Hz - 20000 Hz Number of Ways:2 Maximum SPL (MHF):128 dB Maximum SPL (LMHF):130 dB Horizontal Coverage:100° |
| Technical Specifications | AES Power Handling:600 W Nominal Impedance (LF):4 Ω AES Power Handling (LF):600 W Peak Power Handling (LF):1200 W Nominal Impedance (MHF):8 Ω AES Power Handling (MHF):250 W Peak Power Handling (MHF):500 W Transducer LF:4 x 6.5" Transducer HF:4 x 8" planar ribbons Enclosure Type:Passive Radiators (6 x 8") Crossover Type:Active (FIR) |
| Connector Specifications | Analog:1 x speakON NL4MP |
| Physical Specifications | Height:838 mm Width:282 mm Depth:470 mm Weight:34 kg Handles:2 Rigging:Compatible with A 470 Bump |
