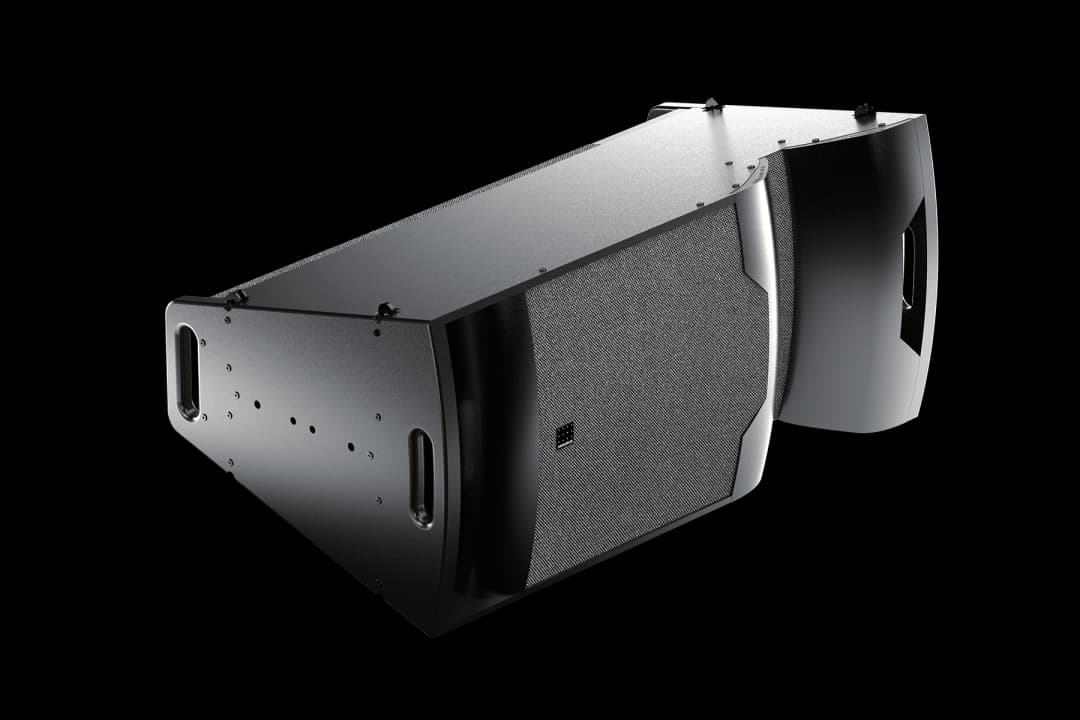

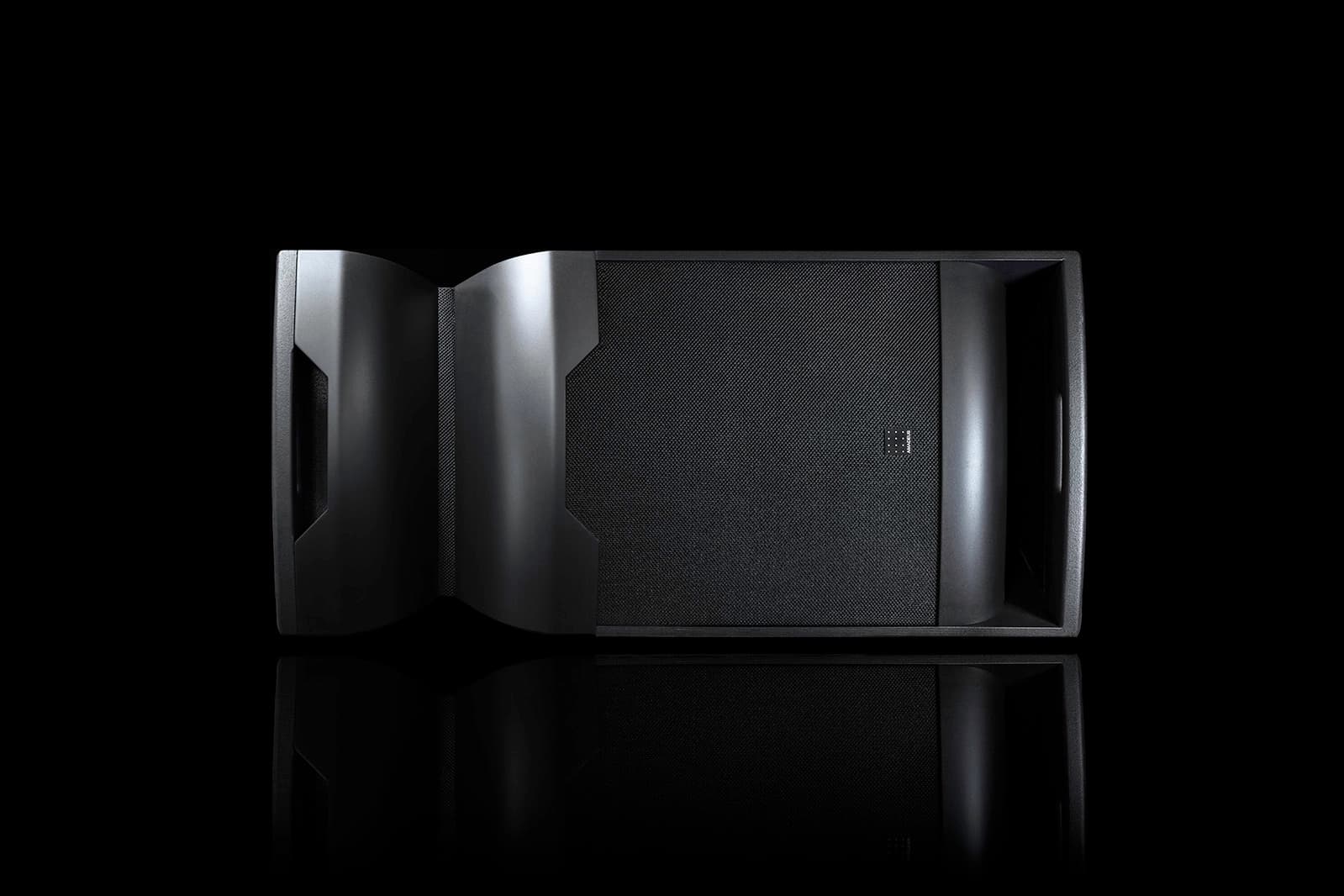

NUMAX XV Wide
Cardioid full-range line-array loudspeaker with 30° vertical directivity
| Acoustical Specifications | Frequency Response (± 3 dB):50 Hz - 20000 Hz Operating Frequency Range (-6 dB):43 Hz - 20000 Hz Cut-off Frequencies (-10 dB):37 Hz - 20000 Hz Number of Ways:4 Sensitivity (8 Ω):97 dB Maximum SPL:139 dB Horizontal Coverage:100° Vertical Coverage:30° |
| Technical Specifications | Nominal Impedance (LF):8 Ω AES Power Handling (LF):1000 W Peak Power Handling (LF):4000 W Nominal Impedance (MHF):8 Ω AES Power Handling (MHF):400 W Peak Power Handling (MHF):1500 W Nominal Impedance (LF Cardio):16 Ω AES Power Handling (LF Cardio):600 W Peak Power Handling (LF Cardio):2000 W Transducer LF:1 x 15" driver with neodymium magnet Transducer MF:1 x 8" driver with neodymium magnet Transducer HF:1 x 3" neodymium compression driver Transducer LF (coaxial):2 x 8" driver with neodymium magnet Enclosure Type:Bass reflex (LF) | Passive Radiator (1 x 8") (LC) Crossover Type:Passive |

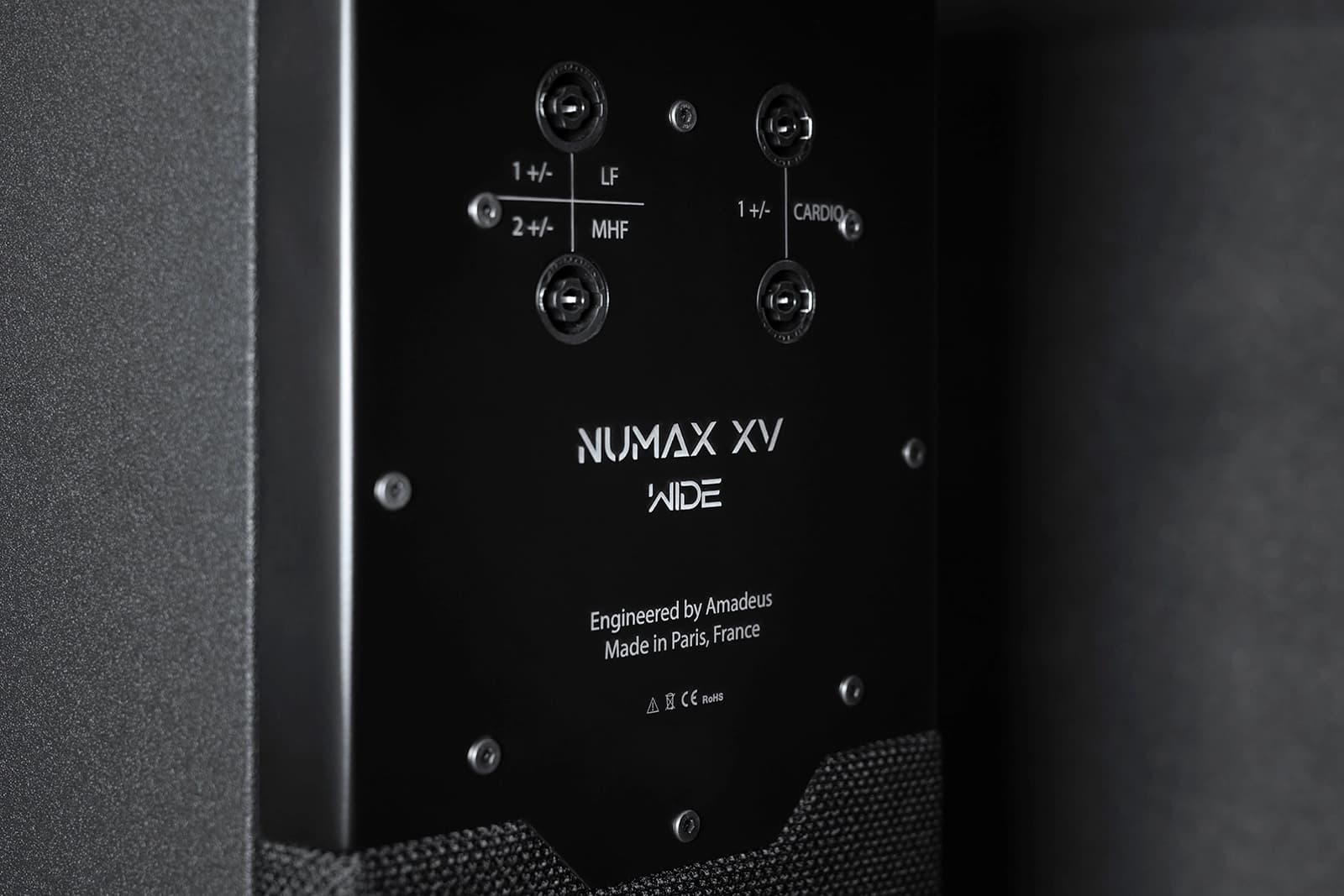

| Connector Specifications | Connectors:4 x speakON NL4MP |
| Physical Specifications | Height:460 mm Width:950 mm Depth:540 mm Weight:55 kg Handles:4 Rigging:Compatible with NUMAX XV Focus, NUMAX XV Wide and NUMAX BUMP |
