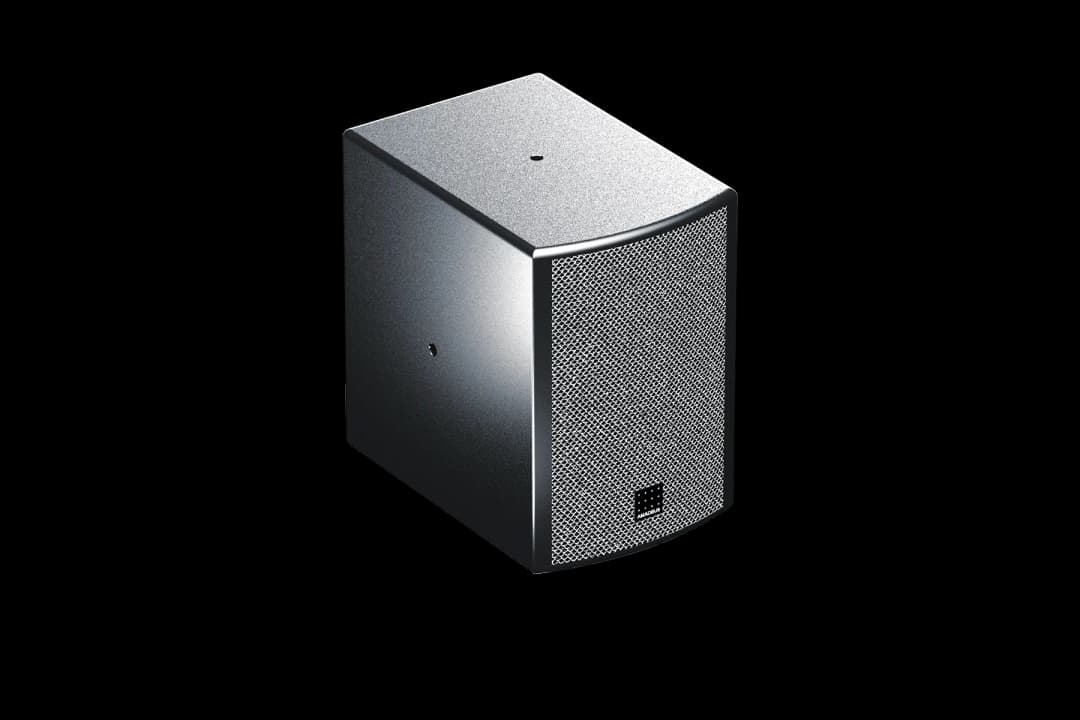

PMX 5
Ultra-compact 2-way passive loudspeaker with 90° axisymmetric dispersion (1 x 5.25’’ LF ; 1 x 1.75’’ HF)
Learn more
| Acoustical Specifications | Amplitude Linearity:105 Hz - 20000 Hz Operating Frequency Range:92 Hz - 20000 Hz Cut-off Frequencies:80 Hz - 20000 Hz Number of Ways:2 Maximum SPL (LF):117 dB Sensitivity (LMHF, 8Ω):90 dB Horizontal Coverage:90° Vertical Coverage:90° |
| Technical Specifications | Nominal Impedance:8 Ω AES Power Handling:130 W Program Power Handling:250 W Peak Power Handling:350 W Transducer LF:1 x 5.25" Transducer HF:1 x 1.75" Enclosure Type:Bass-Reflex Crossover Type:Passive |
| Connector Specifications | Analog:2 x speakON NL4MP |
| Physical Specifications | Height:233 mm Width:160 mm Depth:236 mm Weight:5 kg Rigging:4 x M6 threaded inserts for optional U-Brackets Rigging:2 x M6 threaded inserts for optional mounting adapter |
