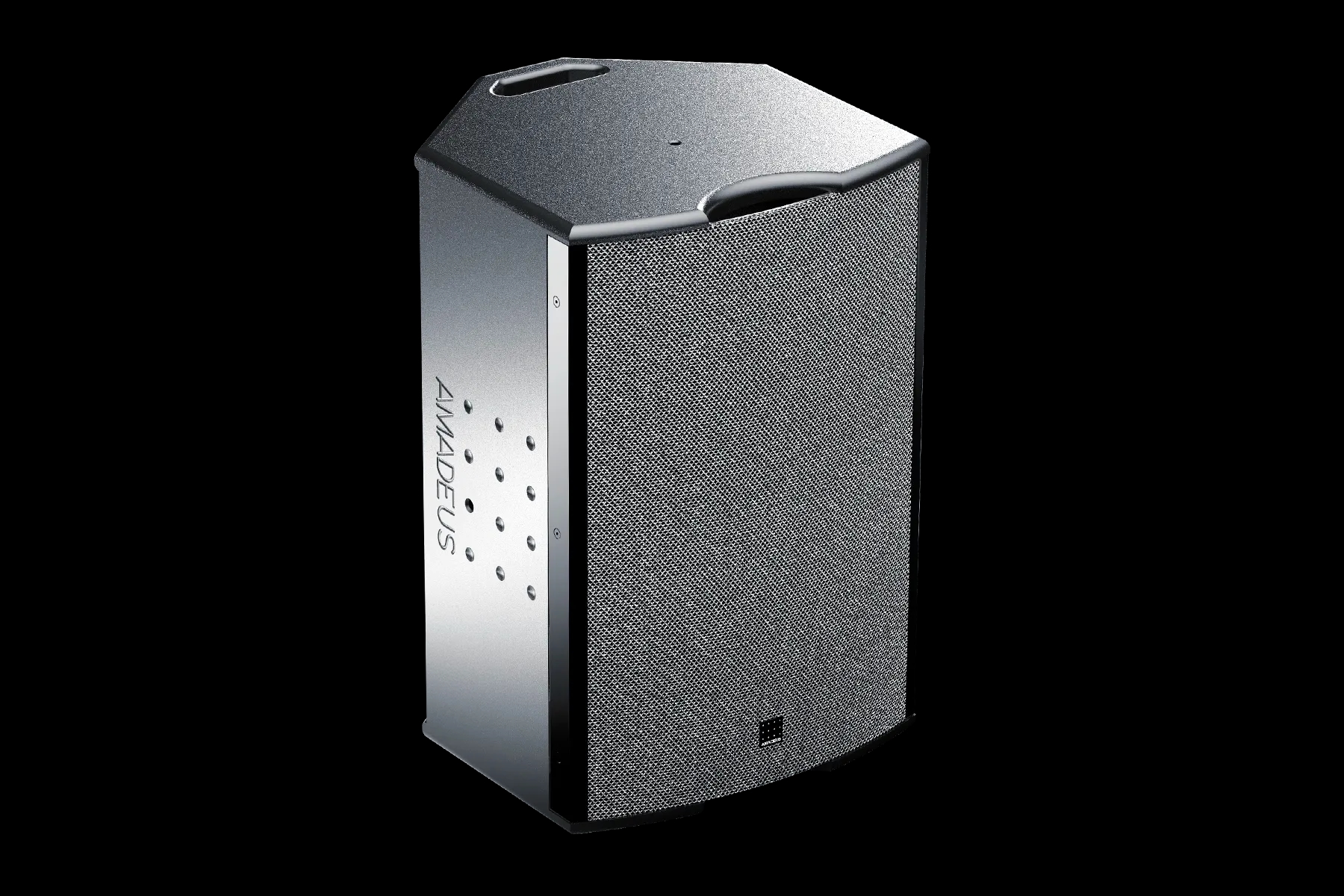

Amadeus PMX10MKII

PMX 10

Compact 2-way passive loudspeaker with 70° axisymmetric dispersion (1 x 10’’ LF ; 1 x 2.5’’ HF)

Request a quoteLearn more
Amadeus PMX10MKII
Acoustical Specifications
Frequency Response (± 3 dB):60 Hz - 20000 Hz
Operating Frequency Range (-6 dB):55 Hz - 20000 Hz
Cut-off Frequencies (-10 dB):52 Hz - 20000 Hz
Number of Ways:2
Maximum SPL (LF):124 dB
Sensitivity (LMHF, 8 Ω):97 dB
Horizontal Coverage:70°
Vertical Coverage:70°
Technical Specifications
Nominal Impedance:8 Ω
Peak Power Handling:500 W
AES Power Handling (LF):200 W
Program Power Handling (LF):400 W
Transducer LF:1 x 10"
Transducer HF:1 x 2.5"
Enclosure Type:Bass-Reflex
Crossover Type:Passive
Connector Specifications
Power Connector:2 x speakON NL4MP
Physical Specifications
Height:506 mm
Width:337 mm
Depth:348 mm
Weight:17 kg
Handles:2
Rigging:3 x M8 threaded inserts for optional U-Brackets
Rigging:1 x 35 mm pole socket
