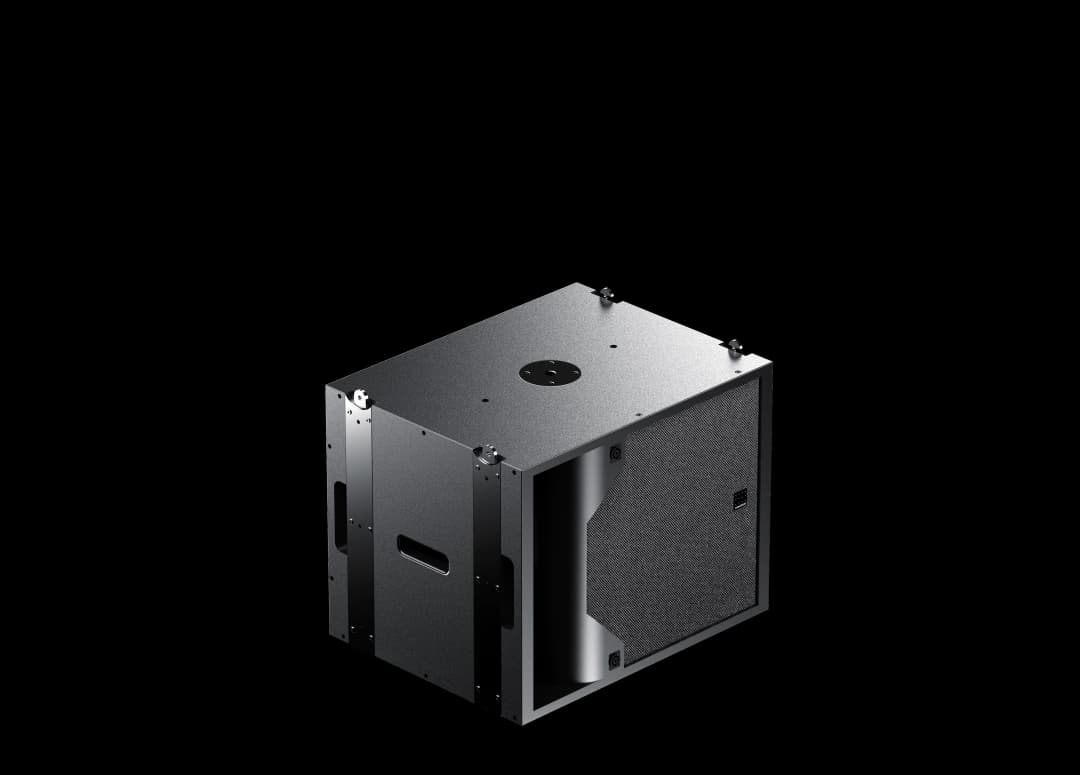

DIVA M² SUB NEO

DIVA M² SUB NEO

High-efficiency LF extension loudspeaker for DIVA M² (1 x 15’’ LF) featuring optimised port and shallow depth

Learn more

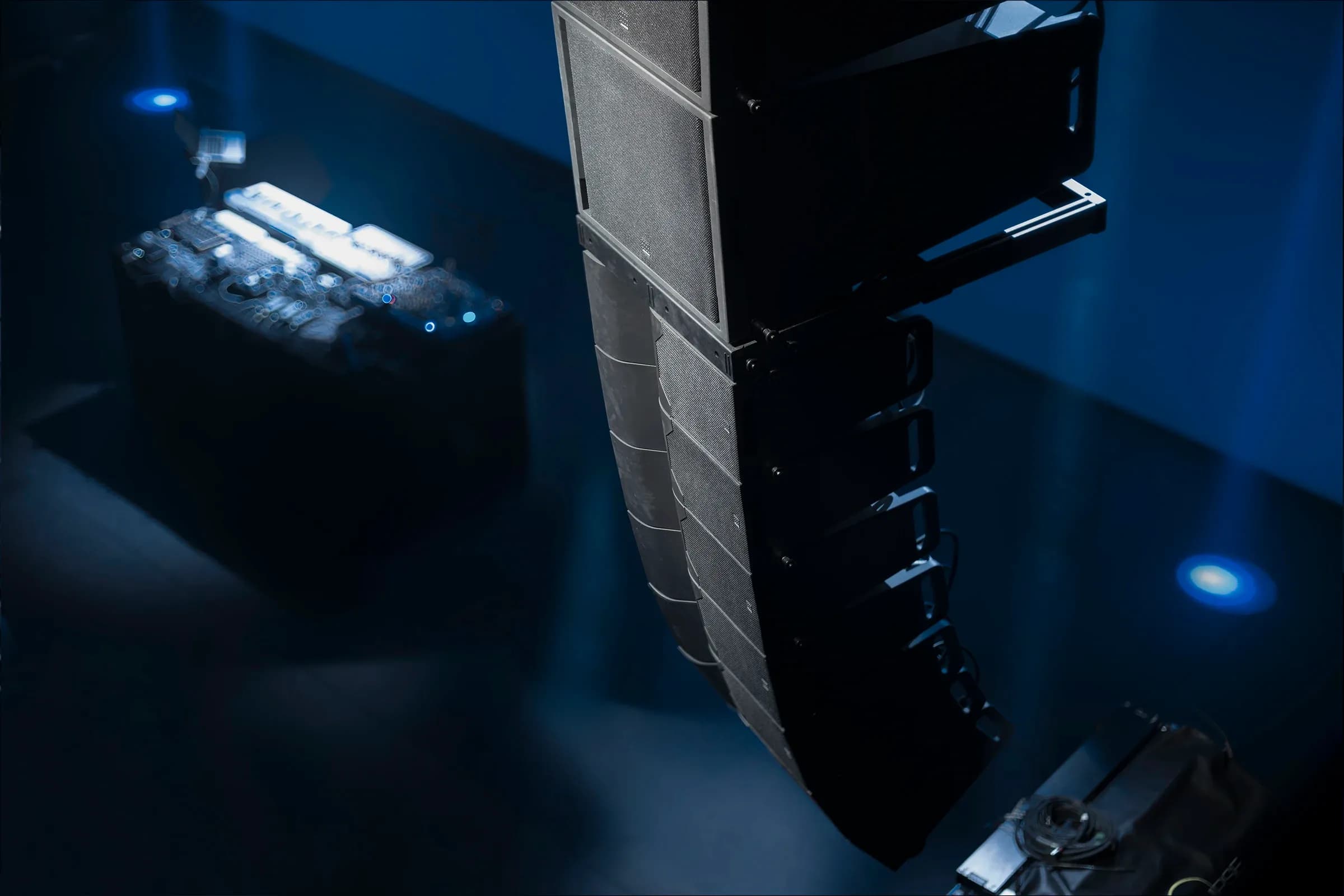

Amadeus Speakers Parallax DIVA M2 Gaite Lyrique
Acoustical Specifications
Amplitude Linearity:45 Hz - 350 Hz
Operating Frequency Range:40 Hz - 350 Hz
Cut-off Frequencies:36 Hz - 350 Hz
Number of Ways:1
Sensitivity (LF, 8Ω):96 dB
Maximum SPL (LF):139 dB
Horizontal Coverage:360°
Vertical Coverage:360°
Technical Specifications
Nominal Impedance:8 Ω
AES Power Handling:1600 W
Program Power Handling:3200 W
Peak Power Handling:4800 W
Transducer LF:1 x 15"
Enclosure Type:Bass-Reflex
Connector Specifications
Connectors:4 x speakON NL4MP
Physical Specifications
Height:493 mm
Width:589 mm
Depth:459 mm
Weight:40 kg
Handles:2
Rigging:Compatible with M² BUMP NEO
Rigging:2 x M10 threaded inserts for M10 Eye Bolts
Rigging:1 x screw receptacle for satellite pole
