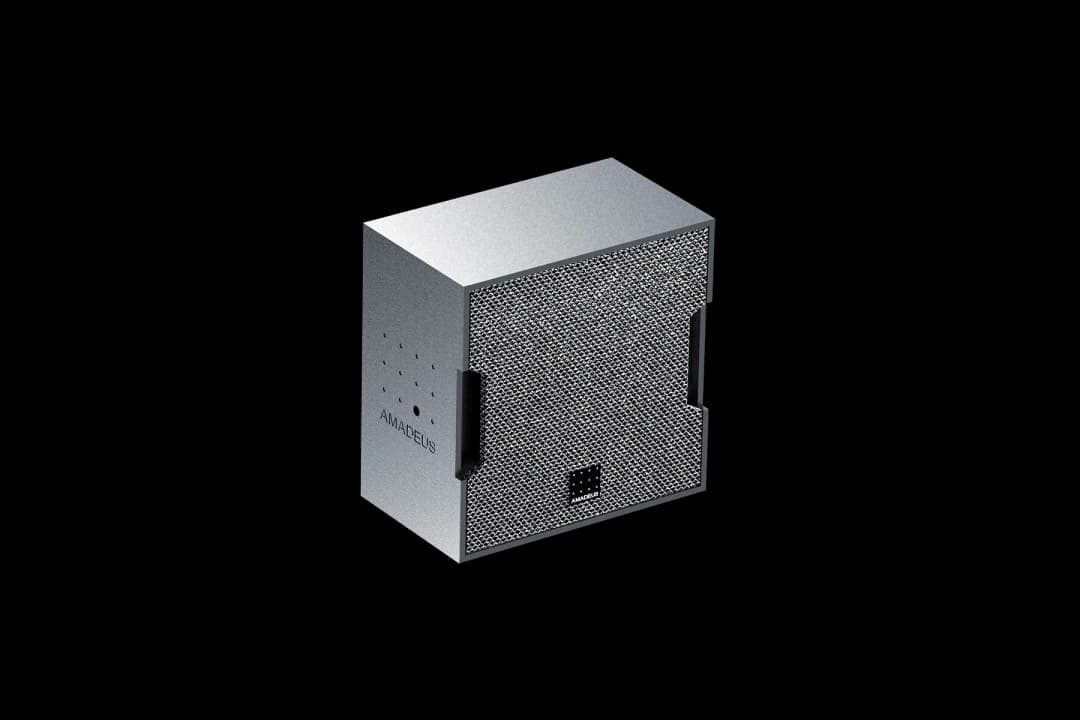

C 4
2-way passive point-source horn speaker with 90° conical dispersion (1 x 4’’ LF ; 1 x 0.8’’ HF)
Learn more
| Acoustical Specifications | Amplitude Linearity:90 Hz - 20000 Hz Operating Frequency Range:75 Hz - 20000 Hz Cut-off Frequencies:70 Hz - 20000 Hz Number of Ways:2 Sensitivity (LMHF, 8Ω):82.7 dB Sensitivity (LMHF, 4Ω):86.8 dB Maximum SPL (LMHF):105 dB Horizontal Coverage:90° Vertical Coverage:90° |
| Technical Specifications | Nominal Impedance:4 / 8 Ω AES Power Handling:30 W Program Power Handling:60 W Peak Power Handling:120 W Transducer LF:1 x 4’’ driver with neodymium magnet Transducer HF:1 x 0.75’’ neodynium dome tweeter Enclosure Type:Sealed Crossover Type:Passive |
| Connector Specifications | Analog:1 x speakON NL4MP or 1 x Binding Post or 1 x Cable Gland |
| Physical Specifications | Height:180 mm Width:180 mm Depth:127 mm Weight:2 kg Rigging:2 x M5 threaded inserts for optional U-Bracket |
