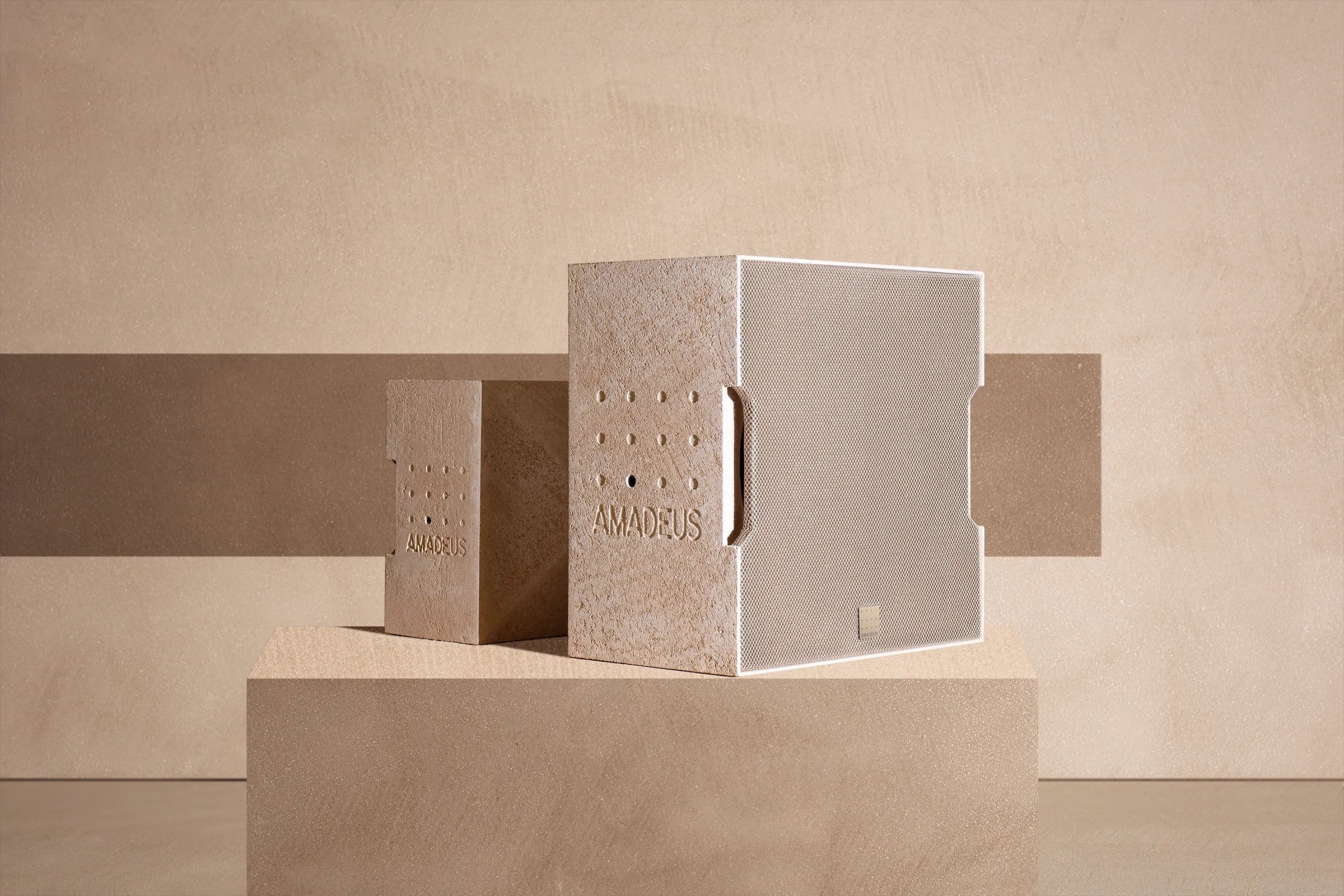

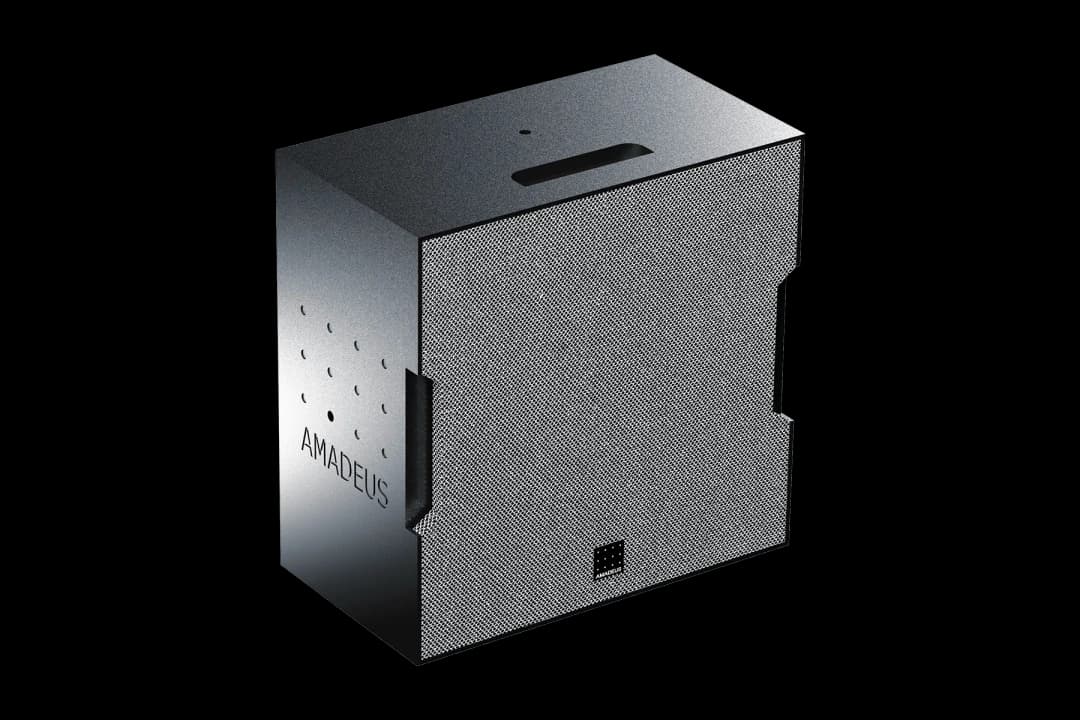

C 12
High-power 2-way passive loudspeaker with 80° x 60° elliptical dispersion (1 x 12’’ LF ; 1 x 1.75’’ HF)
| Acoustical Specifications | Frequency Response (± 3 dB):78 Hz - 20000 Hz Operating Frequency Range (-6 dB):70 Hz - 20000 Hz Cut-off Frequencies (-10 dB):62 Hz - 20000 Hz Number of Ways:2 Sensitivity (8 Ω):98 dB Maximum SPL:131 dB Horizontal Coverage:80° Vertical Coverage:60° |
| Technical Specifications | Nominal Impedance:8 Ω AES Power Handling:500 W Program Power Handling:1000 W Peak Power Handling:2000 W Transducer LF:1 x 12’’ driver with neodymium magnet Transducer HF:1 x 1.75’’ neodynium compression driver Enclosure Type:Bass-Reflex Crossover Type:Passive |
| Connector Specifications | Power Connector:1 x speakON NL4MP |
| Physical Specifications | Height:388 mm Width:388 mm Depth:265 mm Weight:14 kg Handles:2 Rigging:4 x M8 threaded inserts for optional U-Bracket Rigging:2 x M8 threaded inserts for optional mounting adapter |
