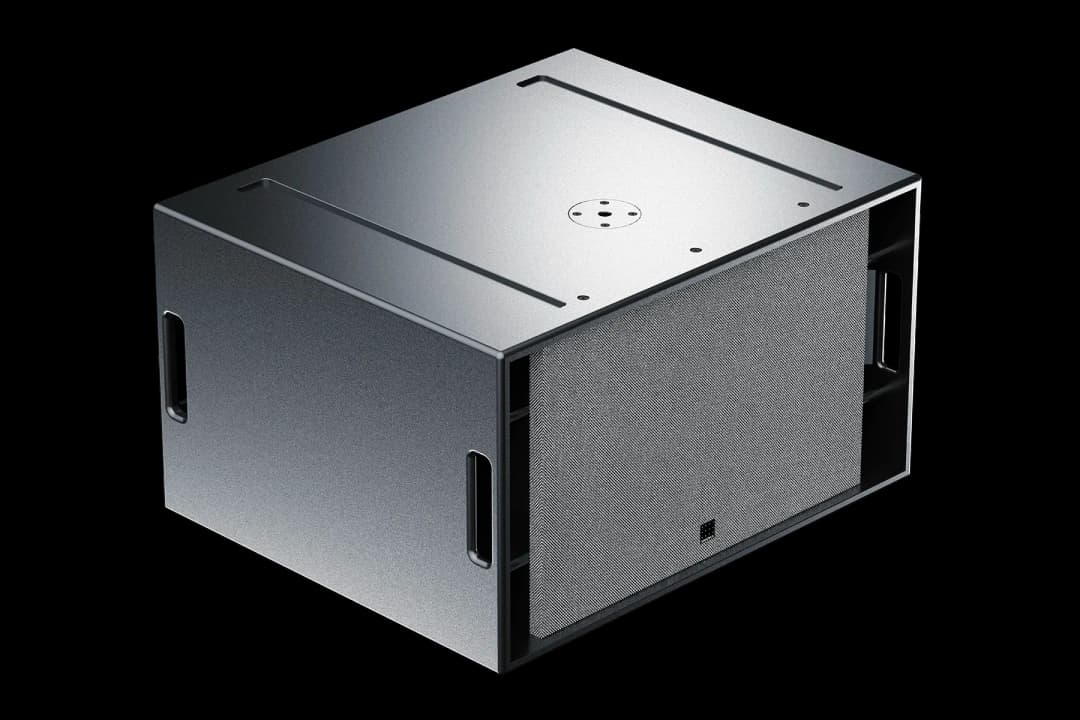

| Acoustical Specifications | Amplitude Linearity:35 Hz - 350 Hz Operating Frequency Range:32 Hz - 350 Hz Cut-off Frequencies:29 Hz - 350 Hz Number of Ways:1 Sensitivity (LF, 8Ω):100 dB Maximum SPL (LF):134 dB Horizontal Coverage:360° Vertical Coverage:360° |
| Technical Specifications | Nominal Impedance:8 Ω AES Power Handling:1000 W Program Power Handling:2000 W Peak Power Handling:2800 W Transducer LF:1 x 18" Enclosure Type:Bass-Reflex |
| Connector Specifications | Analog:2 x speakON NL4MP |
| Physical Specifications | Height:504 mm Width:873 mm Depth:723 mm Weight:67 kg Handles:4 Rigging:1 x screw receptacle for satellite pole |
