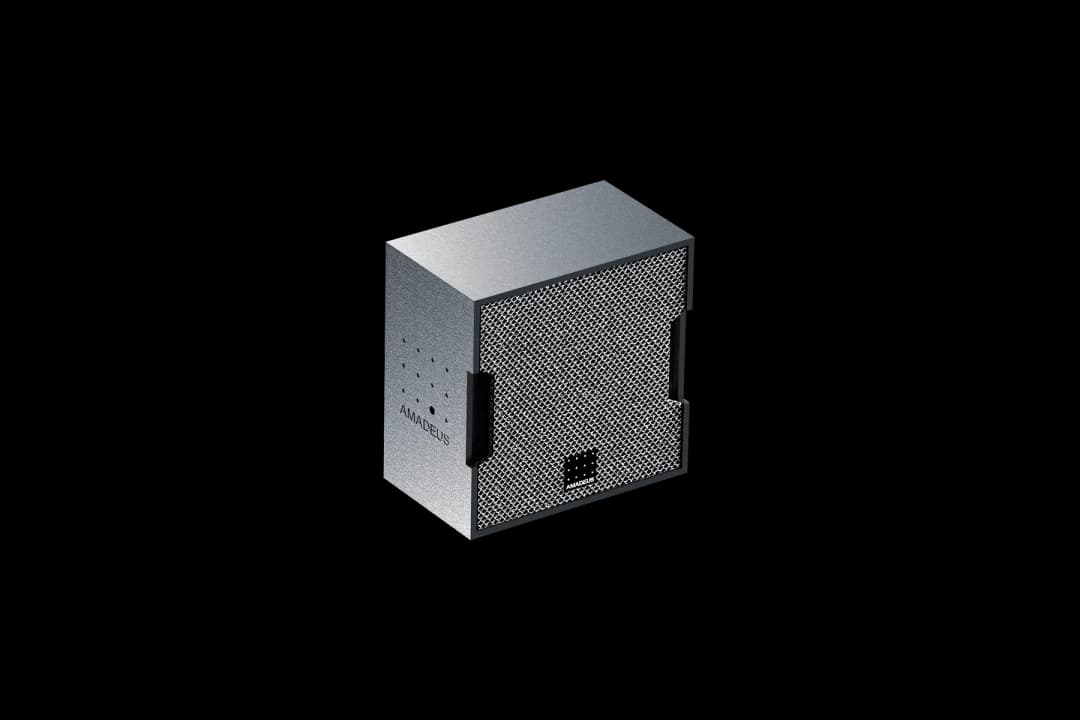

C 3

2-way passive point-source horn speaker with 100° conical dispersion (1 x 3.5” LF ; 1 x 0.625’’ HF)

Acoustical Specifications	Amplitude Linearity:95 Hz - 20000 Hz Operating Frequency Range:84 Hz - 20000 Hz Cut-off Frequencies:74 Hz - 20000 Hz Number of Ways:2 Sensitivity (LMHF, 8Ω):82 dB Sensitivity (LMHF, 4Ω):86 dB Maximum SPL (LMHF):100 dB Horizontal Coverage:100° Vertical Coverage:100°
Technical Specifications	Nominal Impedance:4 / 8 Ω AES Power Handling:30 W Program Power Handling:60 W Peak Power Handling:120 W Transducer LF:1 x 3.5’’ driver with neodymium magnet Transducer HF:1 x 0.625’’ neodynium dome tweeter Enclosure Type:Sealed Crossover Type:Passive
Connector Specifications	Analog:1 x speakON NL4MP or 1 x Binding Post or 1 x Cable Gland
Physical Specifications	Height:152 mm Width:152 mm Depth:108 mm Weight:1.8 kg Rigging:2 x M5 threaded inserts for optional U-Bracket
