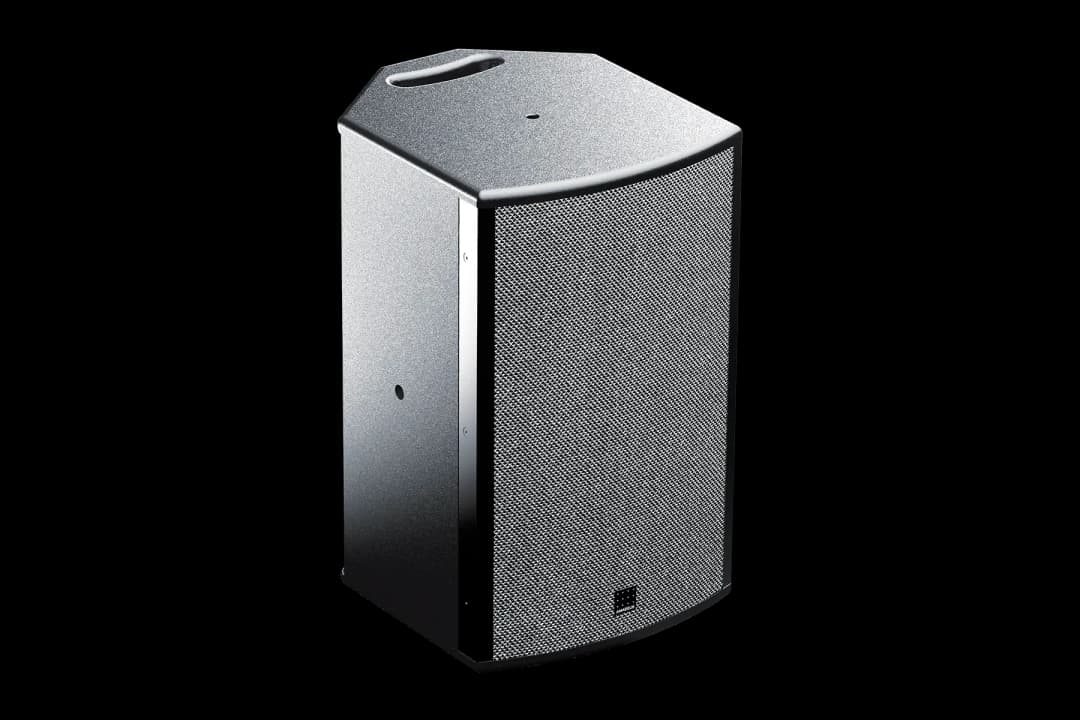

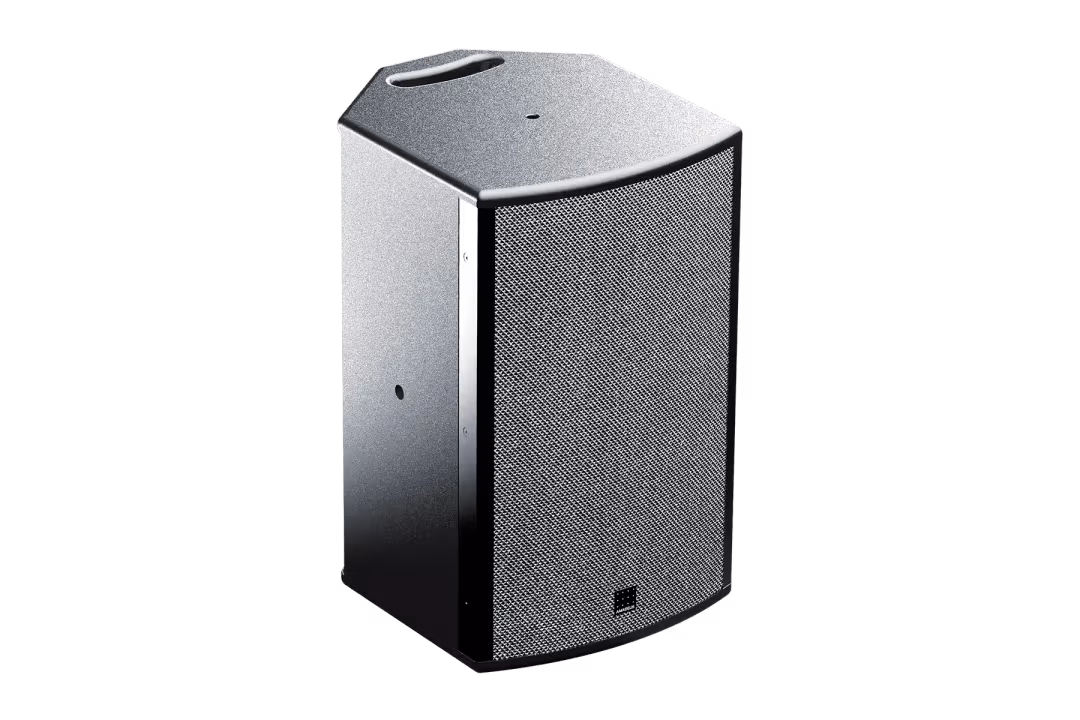

UDX 8
Compact 2-way passive loudspeaker with 100° axisymmetric dispersion (1 x 8’’ LF ; 1 x 1.7’’ HF)
| Acoustical Specifications | Frequency Response (± 3 dB):84 Hz - 20000 Hz Operating Frequency Range (-6 dB):73 Hz - 20000 Hz Cut-off Frequencies (-10 dB):65 Hz - 20000 Hz Number of Ways:2 Maximum SPL (LF):123 dB Sensitivity (LMHF, 8 Ω):97 dB Horizontal Coverage:100° Vertical Coverage:100° |
| Technical Specifications | Nominal Impedance:8 Ω AES Power Handling:250 W Program Power Handling:500 W Peak Power Handling:800 W Transducer LF:1 x 8" Transducer HF:1 x 1.7" Enclosure Type:Bass-Reflex Crossover Type:Passive |
| Connector Specifications | Power Connector:2 x speakON NL4MP |
| Physical Specifications | Height:436 mm Width:266 mm Depth:311 mm Weight:11 kg Handles:2 Rigging:4 x M8 threaded inserts for optional U-Brackets Rigging:2 x M8 threaded inserts for optional mounting adapters Rigging:4 x M8 threaded inserts for optional wall mounts |
