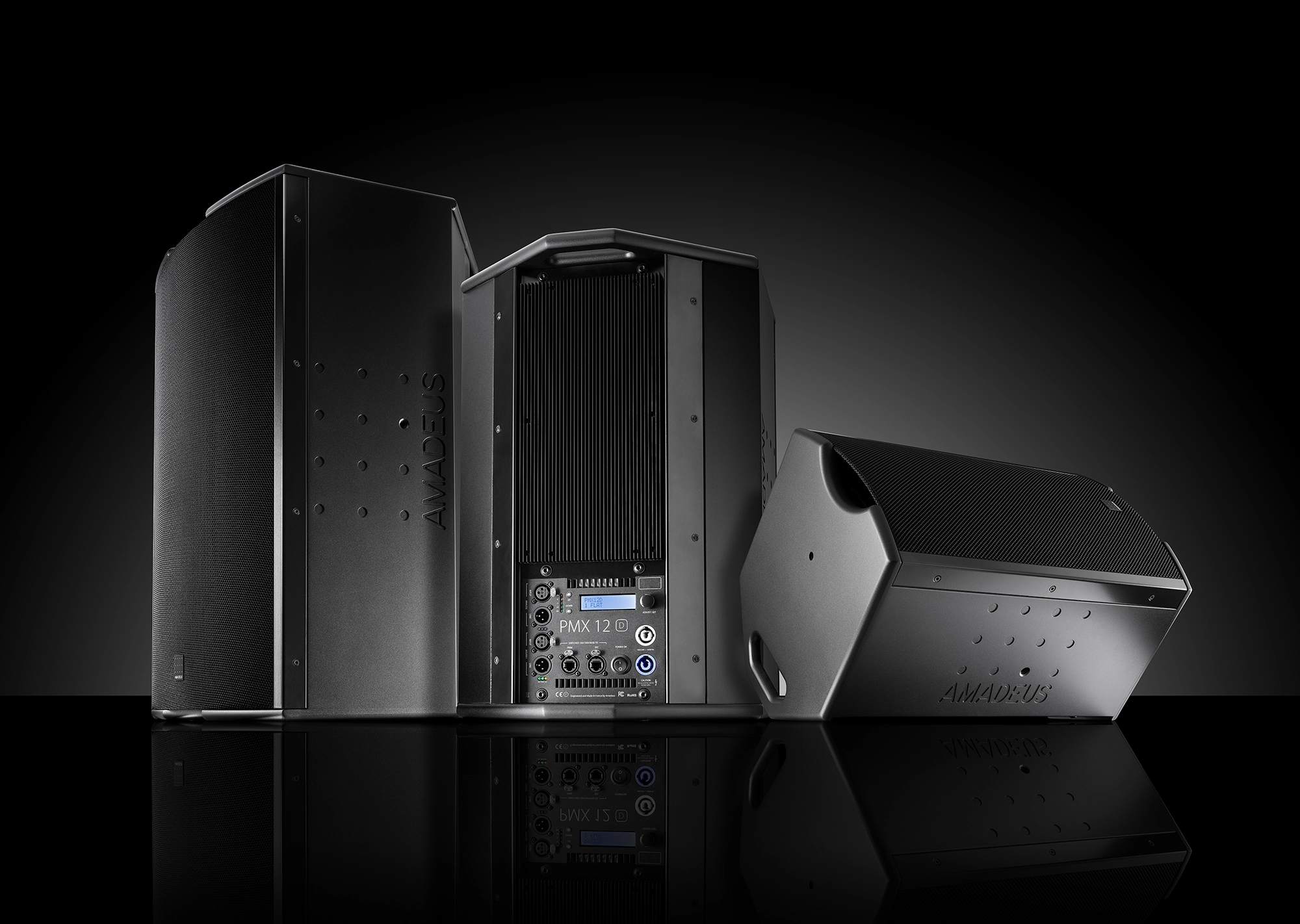

PMX 12 D
High-powered active loudspeaker with Analog, AES3 and Dante I/O (1 x 12’’ LF ; 1 x 3’’ HF)
Learn more.webp&w=3840&q=100)
| Acoustical Specifications | Amplitude Linearity:63 Hz - 20000 Hz Operating Frequency Range:56 Hz - 20000 Hz Cut-off Frequencies:52 Hz - 20000 Hz Number of Ways:2 Maximum SPL (LF):129 dB Horizontal Coverage:80° Vertical Coverage:80° |
| Technical Specifications | Nominal Impedance (LF):8 Ω AES Power Handling (LF):350 W Program Power Handling (LF):700 W Peak Power Handling (LF):980 W Nominal Impedance (MHF):8 Ω AES Power Handling (MHF):80 W Program Power Handling (MHF):160 W Peak Power Handling (MHF):180 W Transducer LF:1 x 12" Transducer HF:1 x 3" Enclosure Type:Bass-Reflex Crossover Type:Active |
| Loudspeaker Processing | Crossover:Multiple filter types (Butterworth, Linkwitz-Riley, Bell, High Shelf, Low Shelf, Notch, All Pass, Band Pass, High Pass, Low Pass) up to 24 dB / Oct. Control & Monitoring Interface:Full configuration and real-time monitoring via PC, Mac and iPad |
| Connector Specifications | Analog:1 x Male XLR (Pin 2+, Pin 3-), 1 x Female XLR (Pin 2+, Pin 3-) AES/EBU:1 x Male XLR (Pin 2+, Pin 3-), 1 x Female XLR (Pin 2+, Pin 3-) Dante:2 x RJ45 etherCON Mains Connectors:1 x IEC 16 A Buttons:Power, Up, Down Encoder:Adjust, Set |
| Physical Specifications | Height:551 mm Width:374 mm Depth:380 mm Weight:22 kg Handles:2 Rigging:3 x M8 threaded inserts for optional U-Brackets Rigging:1 x 35 mm pole socket |
