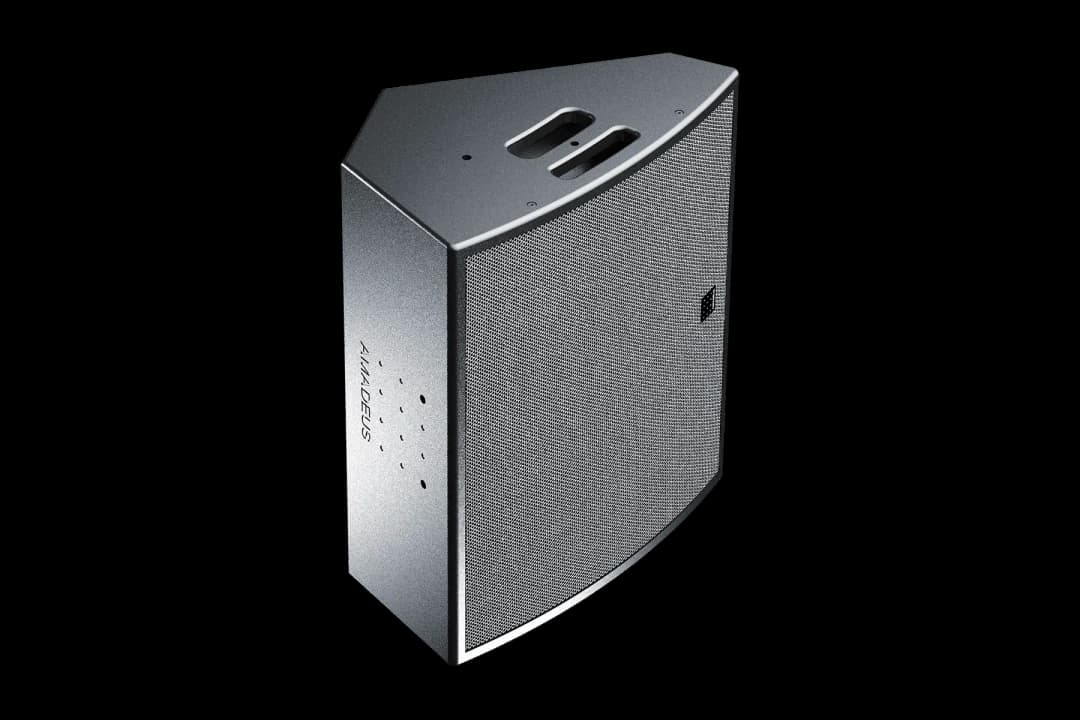

CX 15 R
High-power 2-way passive stage monitor with 60° x 80° elliptical dispersion (1 x 15’’ LF ; 1 x 1.75’’ HF)
Learn more
| Acoustical Specifications | Amplitude Linearity:61 Hz - 20000 Hz Operating Frequency Range:57 Hz - 20000 Hz Cut-off Frequencies:53 Hz - 20000 Hz Number of Ways:2 Sensitivity (LMHF, 8Ω):98 dB Maximum SPL (LMHF):133 dB Horizontal Coverage:60° Vertical Coverage:80° |
| Technical Specifications | Nominal Impedance:8 Ω AES Power Handling:500 W Program Power Handling:1000 W Peak Power Handling:2000 W Transducer LF:1 x 15’’ driver with neodymium magnet Transducer HF:1 x 1.75’’ neodynium compression driver Enclosure Type:Bass-Reflex Crossover Type:Active |
| Connector Specifications | Analog:2 x speakON NL4MP |
| Physical Specifications | Height:491 mm Width:580 mm Depth:352 mm Weight:23.6 kg Handles:2 Rigging:8 x M8 threaded inserts for optional flying brackets Rigging:1 x 35 mm pole socket Monitoring Angle:55° |
