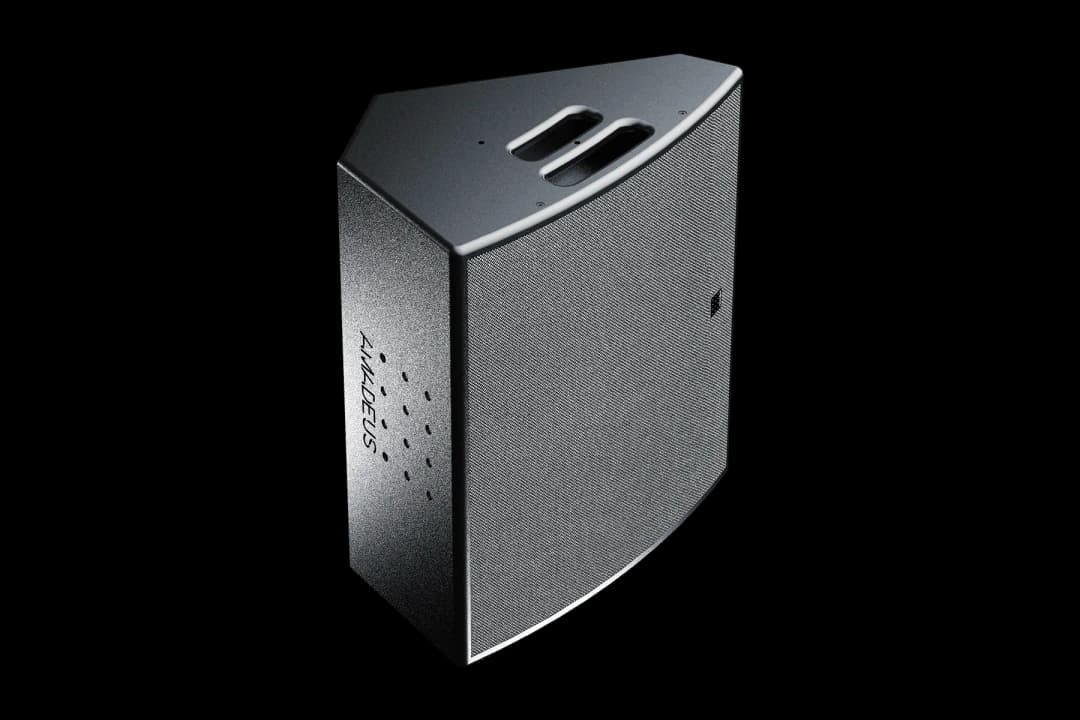

C 15 R
High-power 3-way active stage monitor with 60° x 90° elliptical dispersion (1 x 15’’ LF ; 1 x 3.5’’ MF ; 1 x 1.75” HF)
| Acoustical Specifications | Frequency Response (± 3 dB):54 Hz - 20000 Hz Operating Frequency Range (-6 dB):50 Hz - 20000 Hz Cut-off Frequencies (-10 dB):47 Hz - 20000 Hz Number of Ways:3 Sensitivity (LF, 8 Ω):98 dB Maximum SPL (LF):134 dB Sensitivity (MHF, 8 Ω):113 dB Maximum SPL (MHF):141 dB Horizontal Coverage:60° Vertical Coverage:90° |
| Technical Specifications | Nominal Impedance (LF):8 Ω AES Power Handling (LF):1000 W Program Power Handling (LF):2000 W Peak Power Handling (LF):4000 W Nominal Impedance (MHF):8 Ω AES Power Handling (MHF):150 W Program Power Handling (MHF):500 W Peak Power Handling (MHF):1000 W Transducer LF:1 x 15’’ driver with neodymium magnet Transducer MF:1 x 3.5’’ neodynium compression driver Transducer HF:1 x 1.75’’ neodynium compression driver Enclosure Type:Bass-Reflex Crossover Type:Active |
| Connector Specifications | Analog:2 x speakON NL4MP |
| Physical Specifications | Height:390 mm Width:650 mm Depth:556 mm Weight:31.5 kg Handles:2 Rigging:8 x M8 threaded inserts for optional flying brackets Rigging:1 x 35 mm pole socket Monitoring Angle:55° |
