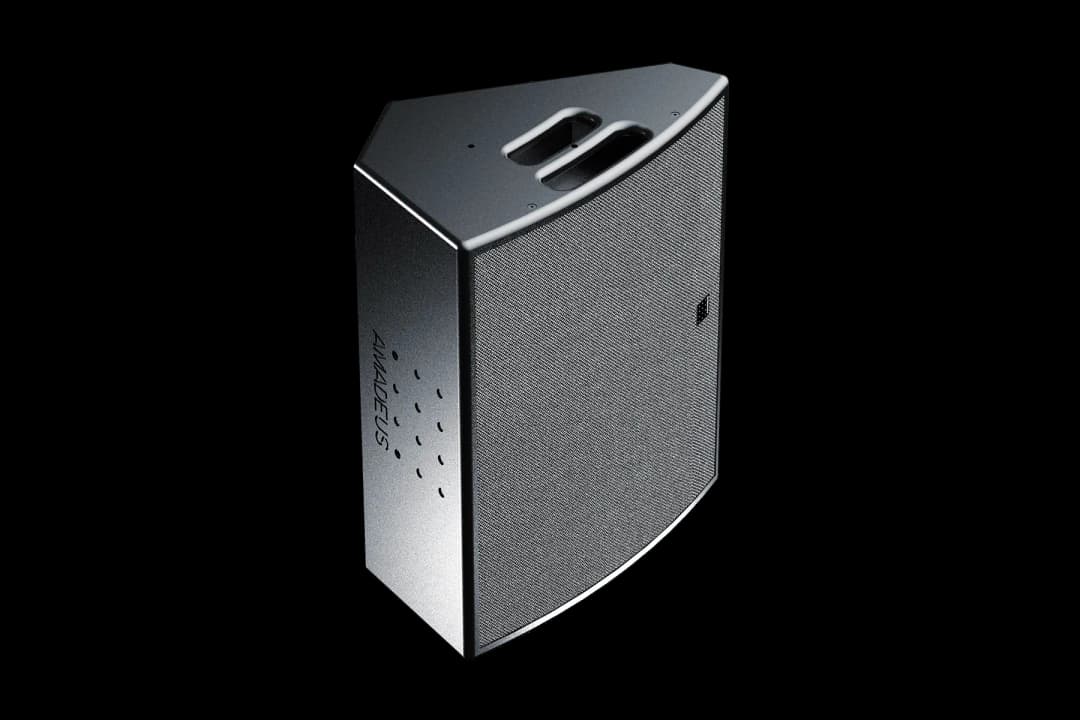

Amadeus C12R

C 12 R

High-power 2-way passive stage monitor with 60° x 80° elliptical dispersion (1 x 12’’ LF ; 1 x 1.75’’ HF)

Request a quoteLearn more
Amadeus Speakers Parallax C12R C15R Jarasum 2
Acoustical Specifications
Frequency Response (± 3 dB):63 Hz - 20000 Hz
Operating Frequency Range (-6 dB):57 Hz - 20000 Hz
Cut-off Frequencies (-10 dB):52 Hz - 20000 Hz
Number of Ways:2
Sensitivity (8 Ω):98 dB
Maximum SPL:131 dB
Horizontal Coverage:60°
Vertical Coverage:80°
Technical Specifications
Nominal Impedance:8 Ω
AES Power Handling:500 W
Program Power Handling:1000 W
Peak Power Handling:2000 W
Transducer LF:1 x 12’’ driver with neodymium magnet
Transducer HF:1 x 1.75’’ neodynium compression driver
Enclosure Type:Bass-Reflex
Crossover Type:Passive
Connector Specifications
Power Connector:2 x speakON NL4MP
Physical Specifications
Height:333 mm
Width:600 mm
Depth:475 mm
Weight:25 kg
Handles:2
Rigging:8 x M8 threaded inserts for optional flying brackets
Rigging:1 x 35 mm pole socket
Monitoring Angle:55°
