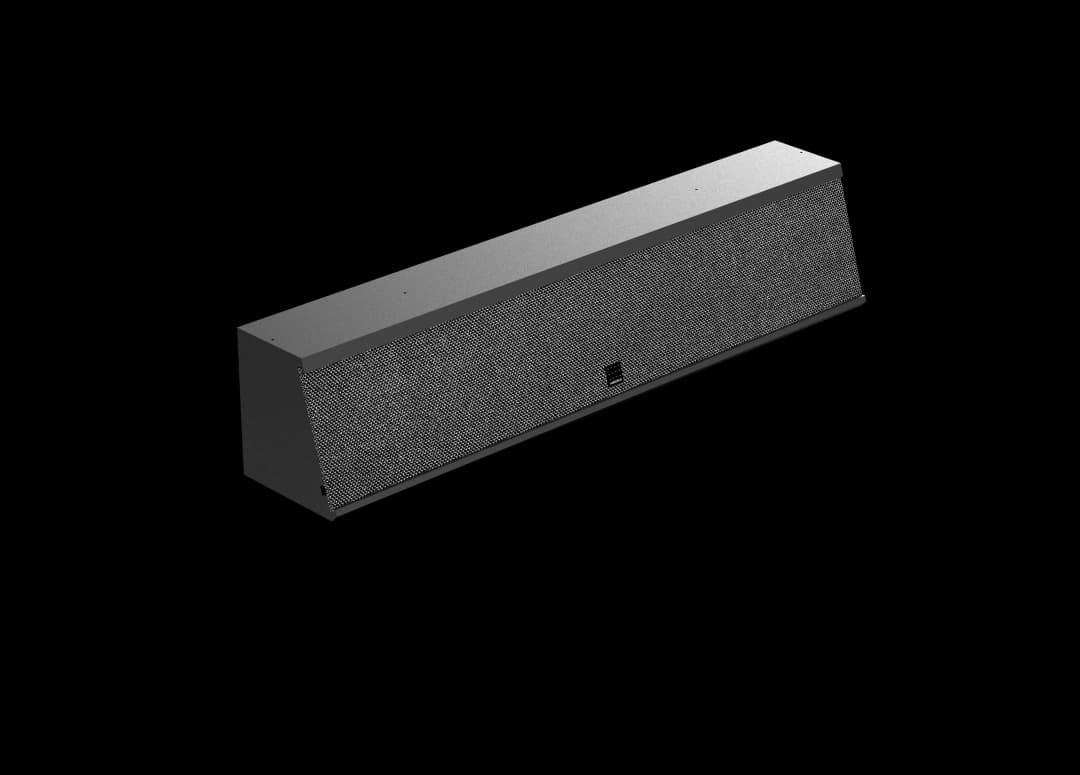

SR 790
Learn more
| Acoustical Specifications | Amplitude Linearity:105 Hz - 20000 Hz Operating Frequency Range:92 Hz - 20000 Hz Cut-off Frequencies:80 Hz - 20000 Hz Number of Ways:2 Horizontal Coverage:90° Vertical Coverage:90° |
| Technical Specifications | Nominal Impedance:8 Ω AES Power Handling:130 W Program Power Handling:250 W Peak Power Handling:350 W Transducer LF:1 x 5.25’’ Transducer HF:1 x 1.75’’ Enclosure Type:2 x 5.25’’ passive radiators Crossover Type:Passive |
| Connector Specifications | Analog:1 x speakON NL4MP |
| Physical Specifications | Height:165 mm Width:790 mm Depth:150 mm Weight:8 kg |
