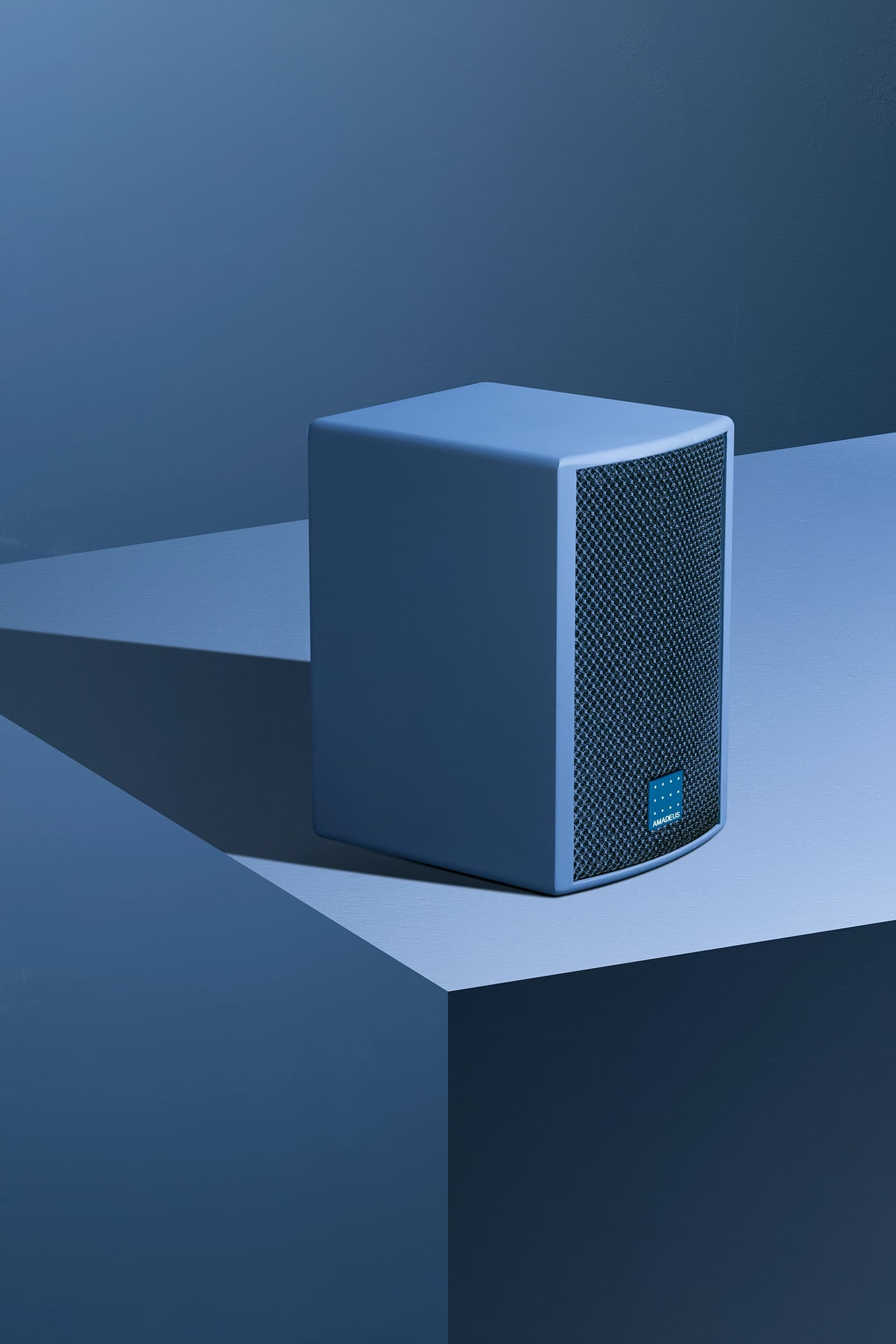

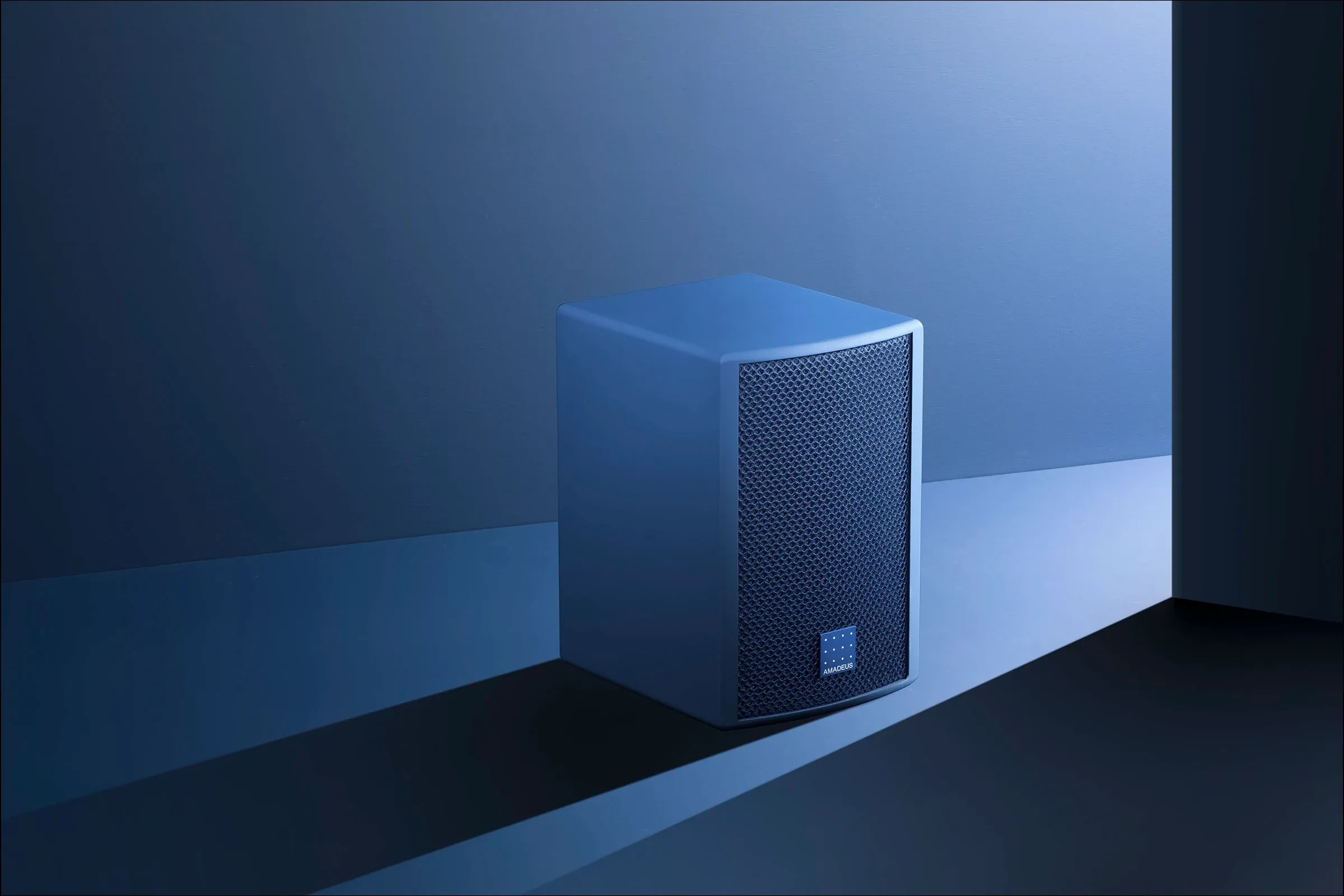

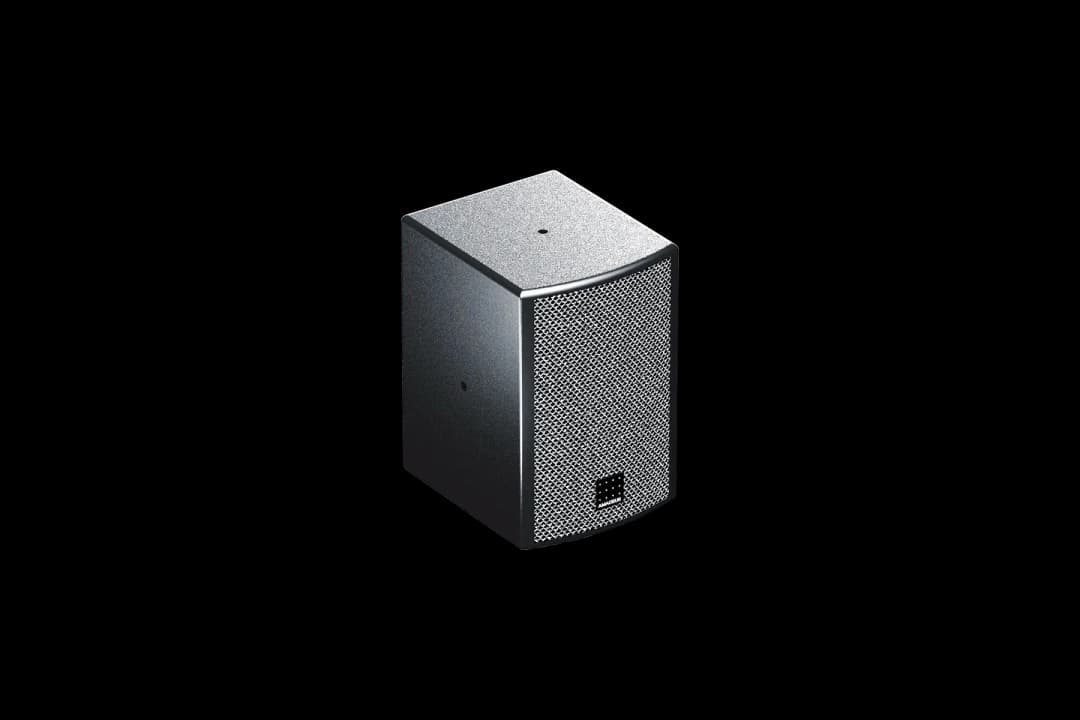

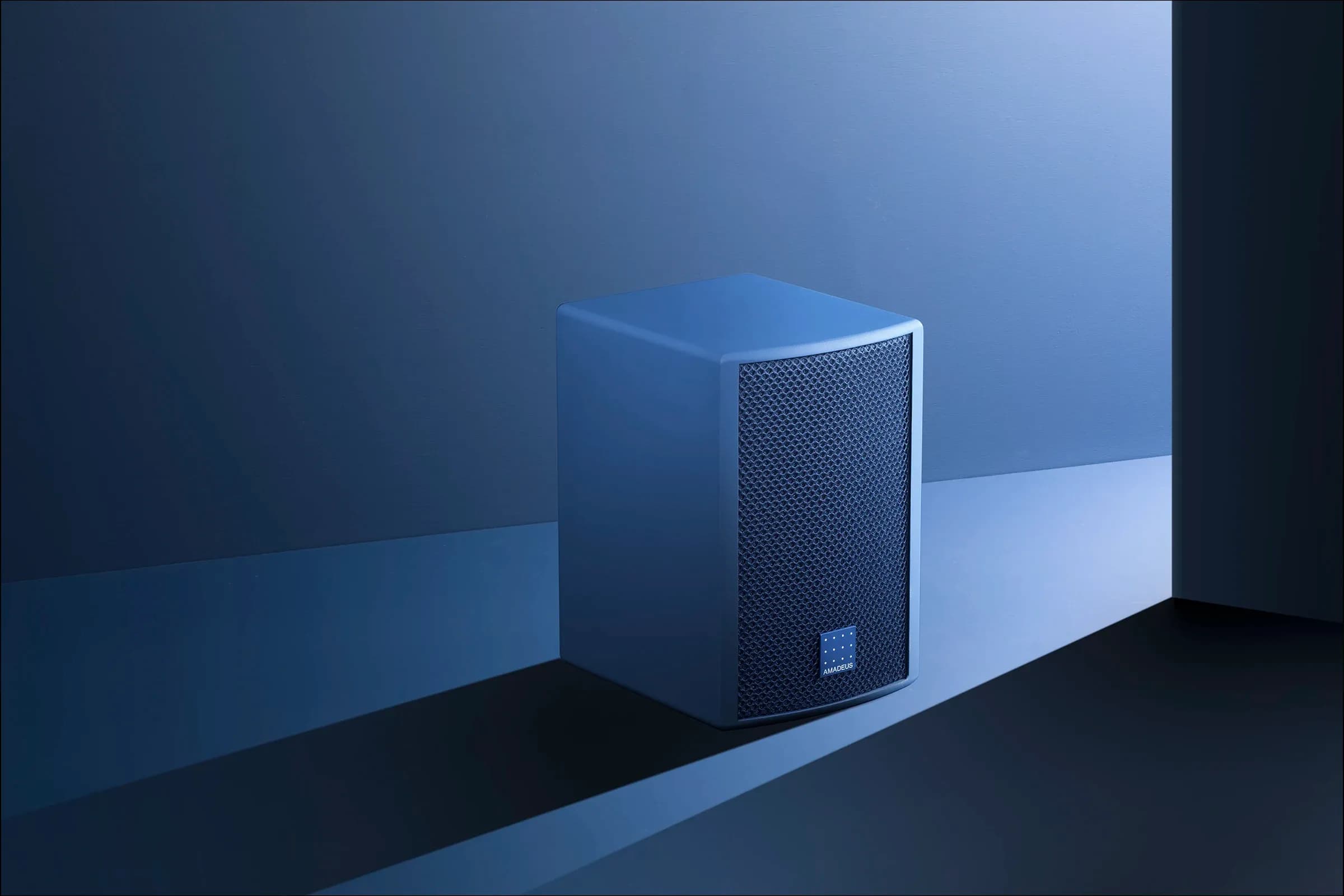

PMX 4
Ultra-compact 2-way passive loudspeaker with 100° axisymmetric dispersion (1 x 4’’ LF ; 1 x 0.8’’ HF)
Learn more
| Acoustical Specifications | Amplitude Linearity:120 Hz - 20000 Hz Operating Frequency Range:100 Hz - 20000 Hz Cut-off Frequencies:95 Hz - 20000 Hz Number of Ways:2 Maximum SPL (LF):112 dB Sensitivity (LMHF, 8Ω):90 dB Horizontal Coverage:100° Vertical Coverage:100° |
| Technical Specifications | Nominal Impedance:8 Ω AES Power Handling:100 W Program Power Handling:200 W Peak Power Handling:300 W Transducer LF:1 x 4" Transducer HF:1 x 0.8" Enclosure Type:Bass-Reflex Crossover Type:Passive |
| Connector Specifications | Analog:2 x speakON NL4MP |
| Physical Specifications | Height:188 mm Width:125 mm Depth:150 mm Weight:2 kg Rigging:4 x M5 threaded inserts for optional U-Brackets Rigging:2 x M5 threaded inserts for optional mounting adapter |
