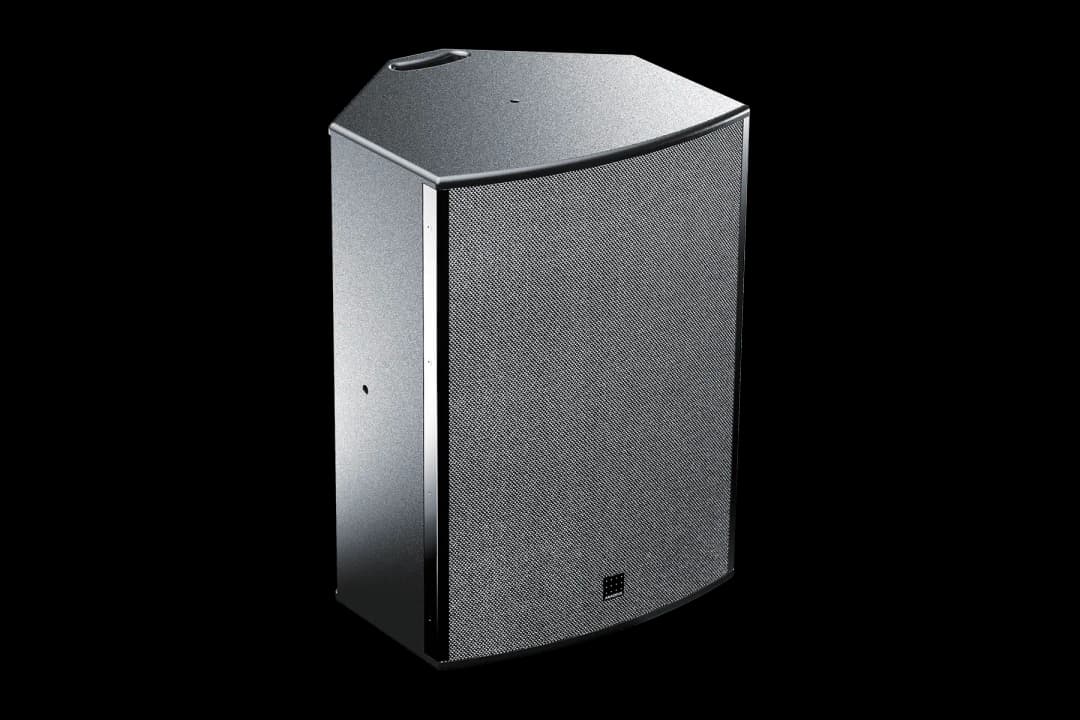

UDX 15
High-efficiency 2-way passive loudspeaker with 80° axisymmetric dispersion (1 x 15’’ LF ; 1 x 3’’ HF)
Learn more| Acoustical Specifications | Amplitude Linearity:60 Hz - 20000 Hz Operating Frequency Range:54 Hz - 20000 Hz Cut-off Frequencies:48 Hz - 20000 Hz Number of Ways:2 Maximum SPL (LF):133 dB Sensitivity (LMHF, 8Ω):99 dB Horizontal Coverage:80° Vertical Coverage:80° |
| Technical Specifications | Nominal Impedance:8 Ω AES Power Handling:400 W Program Power Handling:800 W Peak Power Handling:1400 W Transducer LF:1 x 15" Transducer HF:1 x 3" Enclosure Type:Bass-Reflex Crossover Type:Passive |
| Connector Specifications | Analog:2 x speakON NL4MP |
| Physical Specifications | Height:622 mm Width:446 mm Depth:417 mm Weight:23 kg Handles:2 Rigging:4 x M8 threaded inserts for optional U-Brackets Rigging:2 x M8 threaded inserts for optional mounting adapters Rigging:4 x M8 threaded inserts for optional wall mounts |
