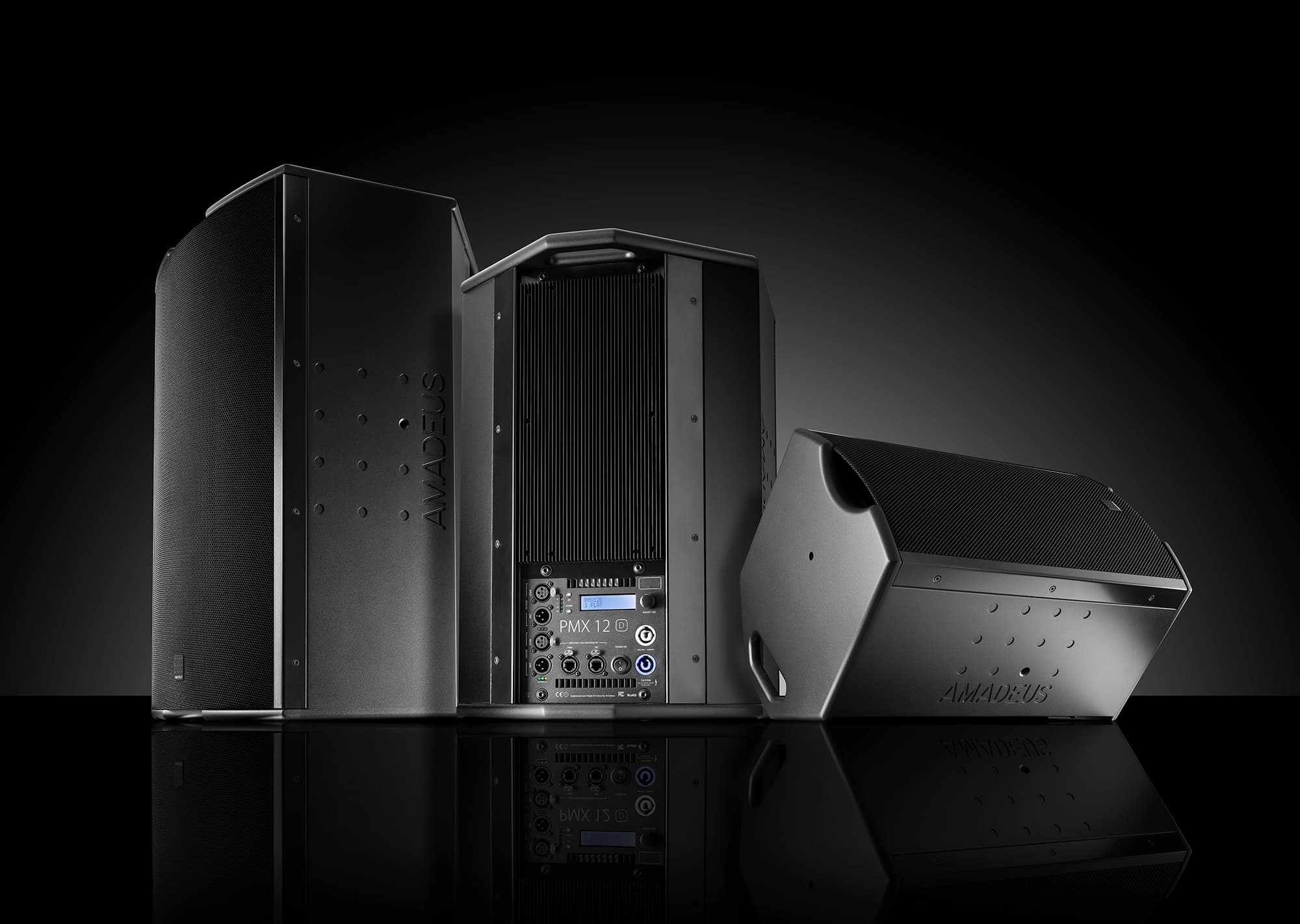

PMX 8 D

Self-powered active loudspeaker with Analog, AES3 and Dante I/O (1 x 8’’ LF ; 1 x 1.7’’ HF)

Acoustical Specifications	Amplitude Linearity:84 Hz - 20000 Hz Operating Frequency Range:73 Hz - 20000 Hz Cut-off Frequencies:65 Hz - 20000 Hz Number of Ways:2 Maximum SPL (LF):123 dB Horizontal Coverage:100° Vertical Coverage:100°
Technical Specifications	Nominal Impedance (LF):8 Ω AES Power Handling (LF):250 W Program Power Handling (LF):500 W Peak Power Handling (LF):800 W Nominal Impedance (MHF):8 Ω AES Power Handling (MHF):50 W Program Power Handling (MHF):100 W Peak Power Handling (MHF):125 W Transducer LF:1 x 8" Transducer HF:1 x 1.7" Enclosure Type:Bass-Reflex Crossover Type:Active
Loudspeaker Processing	Crossover:Multiple filter types (Butterworth, Linkwitz-Riley, Bell, High Shelf, Low Shelf, Notch, All Pass, Band Pass, High Pass, Low Pass) up to 24 dB / Oct. Control & Monitoring Interface:Full configuration and real-time monitoring via PC, Mac and iPad
Connector Specifications	Analog:1 x Male XLR (Pin 2+, Pin 3-), 1 x Female XLR (Pin 2+, Pin 3-) AES/EBU:1 x Male XLR (Pin 2+, Pin 3-), 1 x Female XLR (Pin 2+, Pin 3-) Dante:2 x RJ45 etherCON Mains Connectors:1 x IEC 16 A Buttons:Power, Up, Down Encoder:Adjust, Set
Physical Specifications	Height:436 mm Width:266 mm Depth:311 mm Weight:14 kg Handles:2 Rigging:3 x M8 threaded inserts for optional U-Brackets Rigging:1 x 35 mm pole socket
