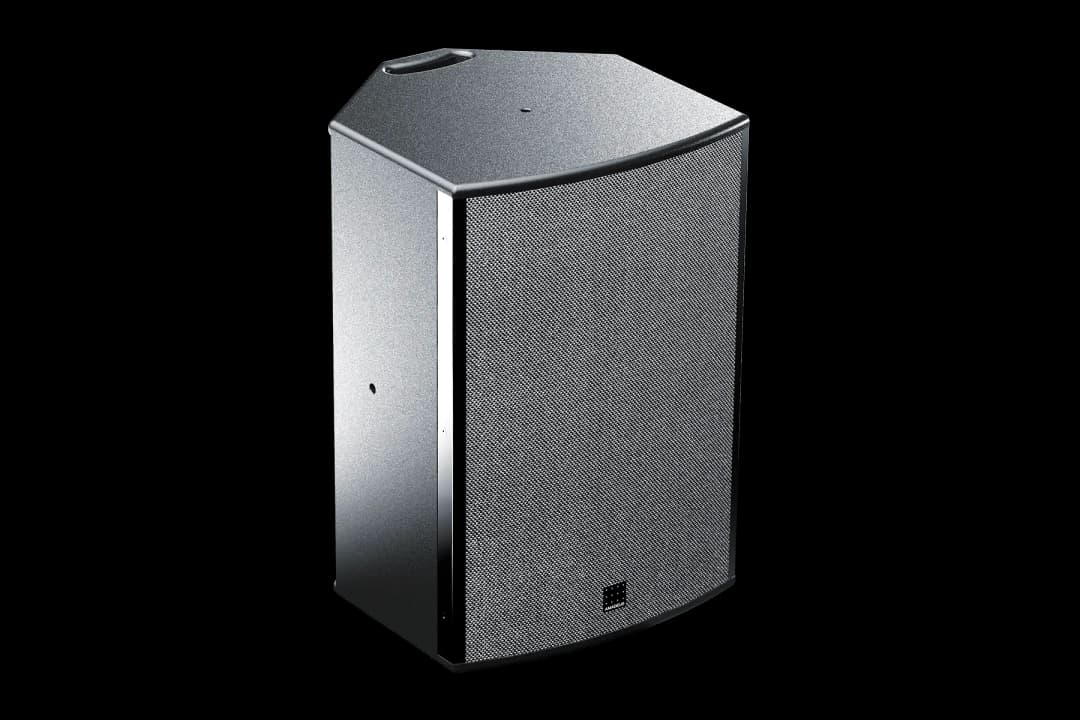

UDX 12
High-power 2-way passive loudspeaker with 80° axisymmetric dispersion (1 x 12’’ LF ; 1 x 3’’ HF)
Learn more| Acoustical Specifications | Amplitude Linearity:63 Hz - 20000 Hz Operating Frequency Range:56 Hz - 20000 Hz Cut-off Frequencies:52 Hz - 20000 Hz Number of Ways:2 Maximum SPL (LF):129 dB Sensitivity (LMHF, 8Ω):99 dB Horizontal Coverage:80° Vertical Coverage:80° |
| Technical Specifications | Nominal Impedance:8 Ω AES Power Handling:350 W Program Power Handling:700 W Peak Power Handling:980 W Transducer LF:1 x 12" Transducer HF:1 x 3" Enclosure Type:Bass-Reflex Crossover Type:Passive |
| Connector Specifications | Analog:2 x speakON NL4MP |
| Physical Specifications | Height:551 mm Width:372 mm Depth:386 mm Weight:21 kg Handles:2 Rigging:4 x M8 threaded inserts for optional U-Brackets Rigging:2 x M8 threaded inserts for optional mounting adapters Rigging:4 x M8 threaded inserts for optional wall mounts |
