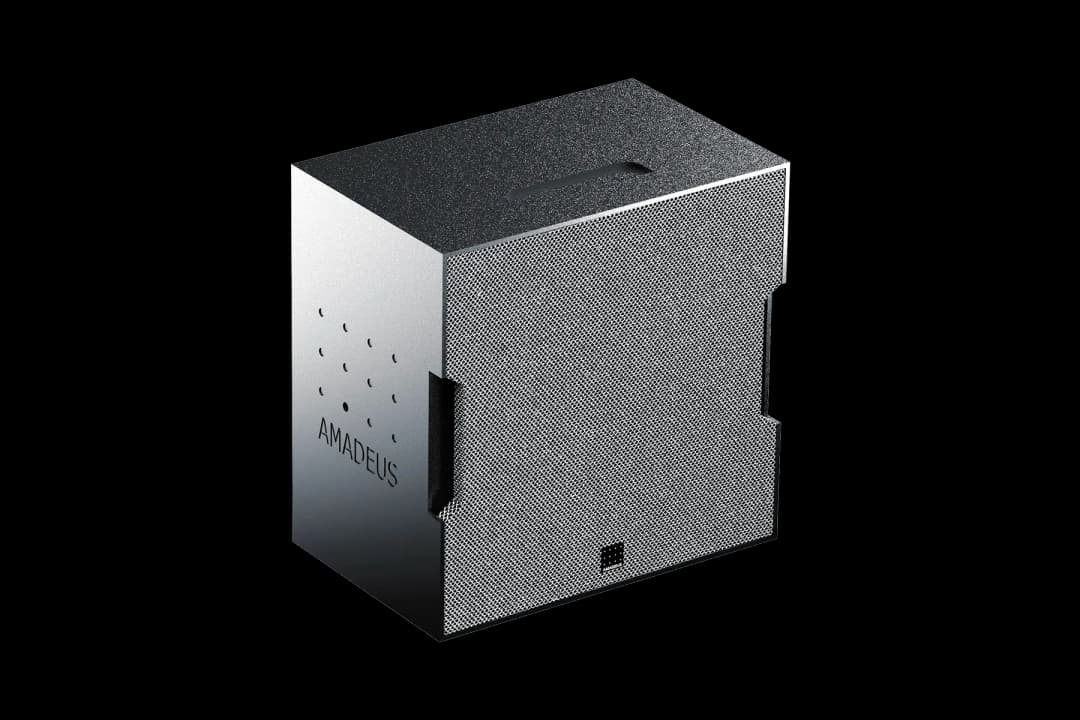

C 10
Compact 2-way passive loudspeaker with 100° axisymmetric dispersion (1 x 10’’ LF ; 1 x 1.7’’ HF)
| Acoustical Specifications | Frequency Response (± 3 dB):75 Hz - 20000 Hz Operating Frequency Range (-6 dB):65 Hz - 20000 Hz Cut-off Frequencies (-10 dB):57 Hz - 20000 Hz Number of Ways:2 Sensitivity (8 Ω):96 dB Maximum SPL:126 dB Horizontal Coverage:100° Vertical Coverage:100° |
| Technical Specifications | Nominal Impedance:8 Ω AES Power Handling:400 W Program Power Handling:800 W Peak Power Handling:1000 W Transducer LF:1 x 10’’ driver Transducer HF:1 x 1.75’’ neodynium compression driver Enclosure Type:Bass-Reflex Crossover Type:Passive |
| Connector Specifications | Power Connector:1 x speakON NL4MP |
| Physical Specifications | Height:336 mm Width:336 mm Depth:260 mm Weight:13.1 kg Handles:2 Rigging:2 x M8 threaded inserts for optional U-Bracket Rigging:2 x M8 threaded inserts for optional mounting adapter |
