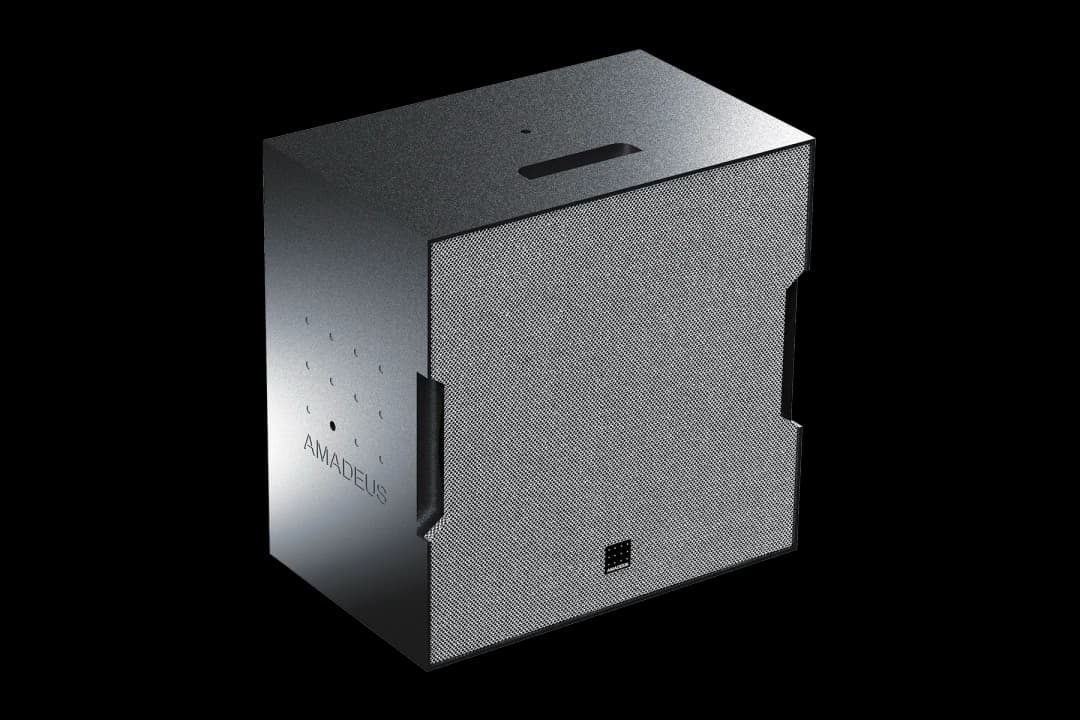

C 15 B
High-power bass complement with built-in passive radiator (1 x 15’’ LF)
| Acoustical Specifications | Frequency Response (± 3 dB):46 Hz - 350 Hz Operating Frequency Range (-6 dB):38 Hz - 350 Hz Cut-off Frequencies (-10 dB):34 Hz - 350 Hz Number of Ways:1 Sensitivity (8 Ω):97 dB Maximum SPL:129 dB Horizontal Coverage:360° Vertical Coverage:360° |
| Technical Specifications | Nominal Impedance:8 Ω AES Power Handling:1000 W Program Power Handling:2000 W Peak Power Handling:2800 W Transducer LF:1 x 15’’ driver with neodymium magnet Enclosure Type:Passive Radiator (1x 12") |
| Connector Specifications | Analog:1 x speakON NL4MP |
| Physical Specifications | Height:446 mm Width:446 mm Depth:356 mm Weight:21 kg Handles:2 Rigging:2 x M8 threaded inserts for optional U-Bracket Rigging:2 x M8 threaded inserts for optional mounting adapter |
