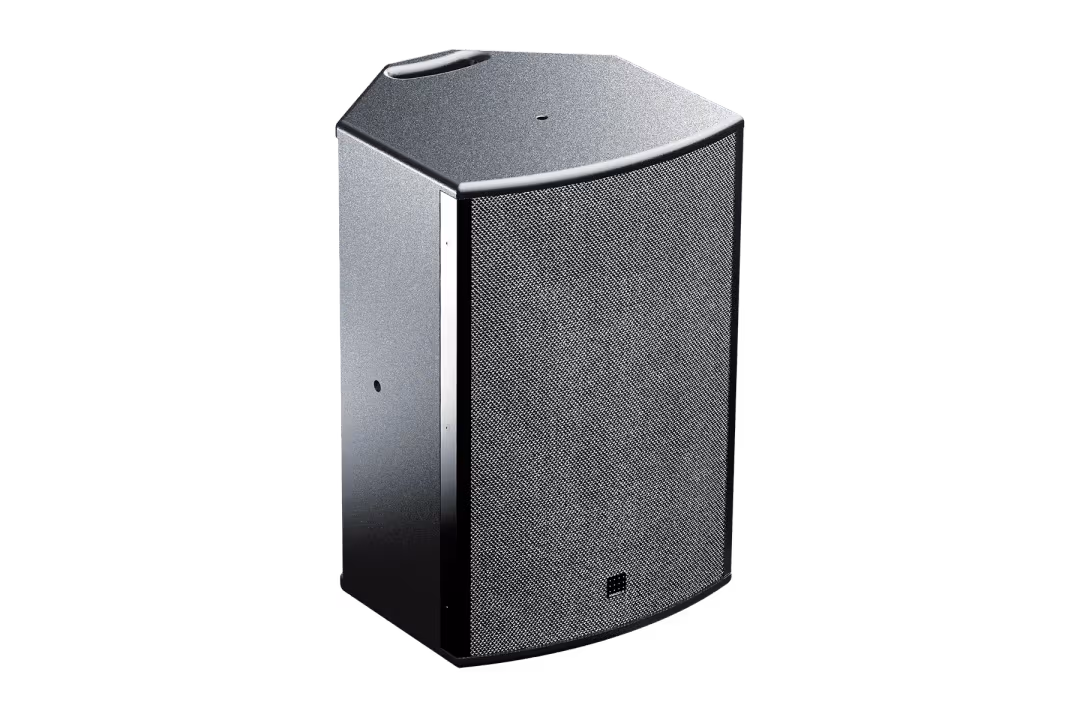

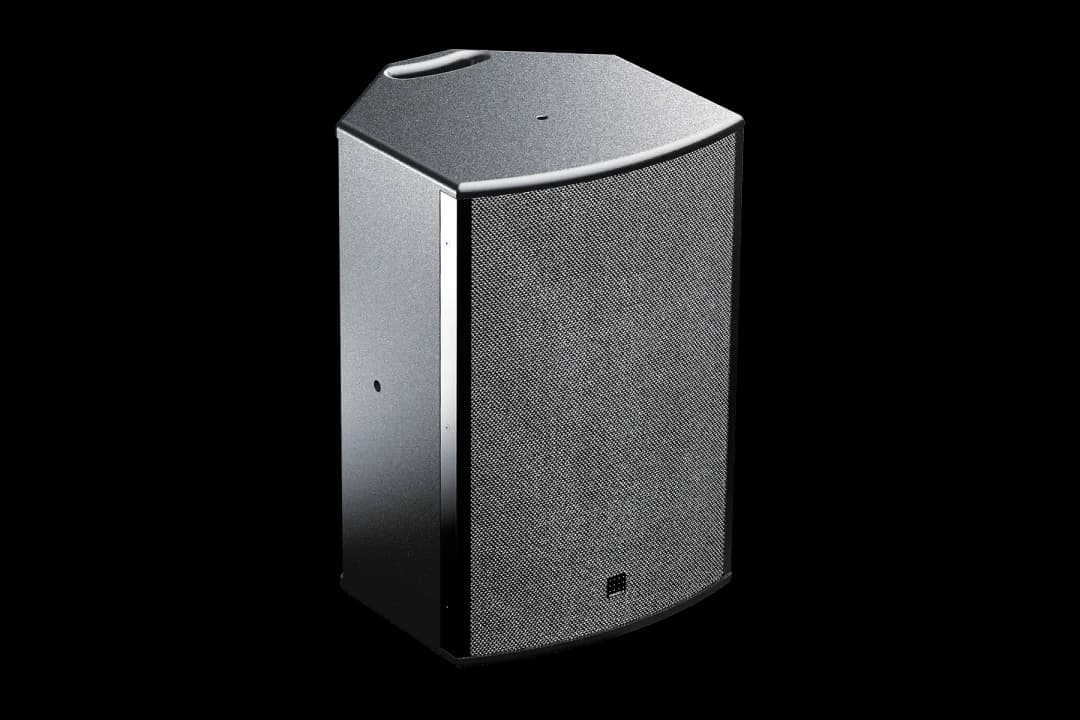

UDX 10
Compact 2-way passive loudspeaker with 70° axisymmetric dispersion (1 x 10’’ LF ; 1 x 2.5’’ HF)
Learn more| Acoustical Specifications | Amplitude Linearity:60 Hz - 20000 Hz Operating Frequency Range:55 Hz - 20000 Hz Cut-off Frequencies:52 Hz - 20000 Hz Number of Ways:2 Maximum SPL (LF):124 dB Sensitivity (LMHF, 8Ω):97 dB Horizontal Coverage:70° Vertical Coverage:70° |
| Technical Specifications | Nominal Impedance:8 Ω AES Power Handling:200 W Program Power Handling:400 W Peak Power Handling:500 W Transducer LF:1 x 10" Transducer HF:1 x 2.5" Enclosure Type:Bass-Reflex Crossover Type:Passive |
| Connector Specifications | Analog:2 x speakON NL4MP |
| Physical Specifications | Height:506 mm Width:337 mm Depth:348 mm Weight:16 kg Handles:2 Rigging:4 x M8 threaded inserts for optional U-Brackets Rigging:2 x M8 threaded inserts for optional mounting adapters Rigging:4 x M8 threaded inserts for optional wall mounts |
