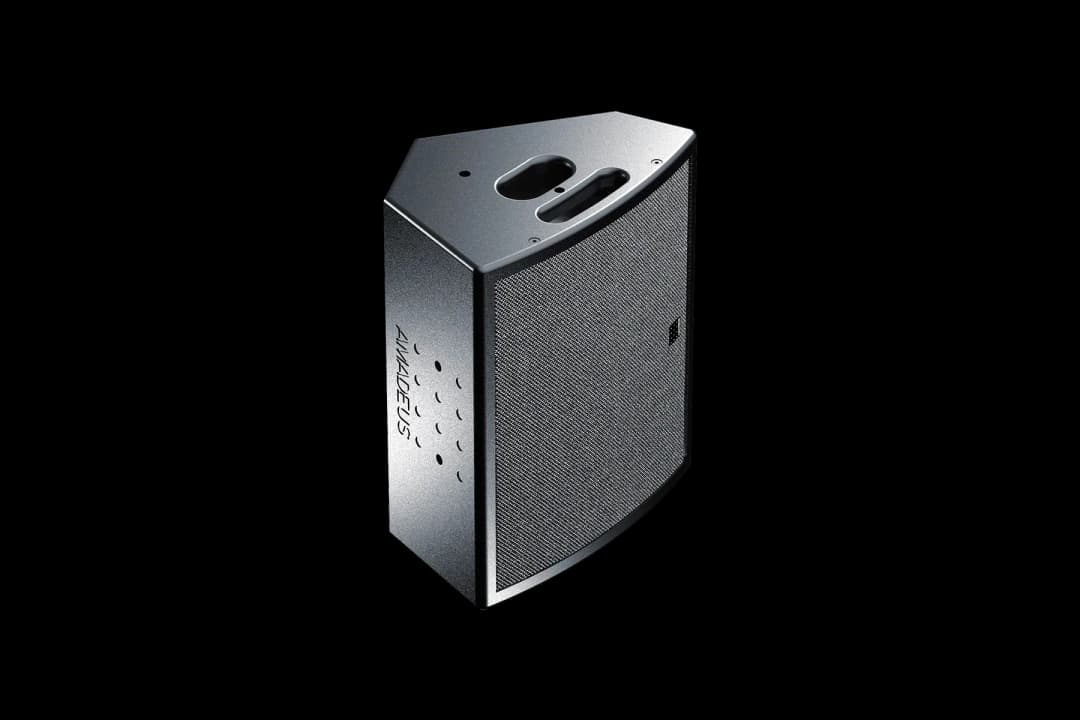

C 8 R
High-power 2-way passive stage monitor with 90° conical dispersion (1 x 8’’ LF ; 1 x 1.75’’ HF)
| Acoustical Specifications | Frequency Response (± 3 dB):65 Hz - 20000 Hz Operating Frequency Range (-6 dB):60 Hz - 20000 Hz Cut-off Frequencies (-10 dB):55 Hz - 20000 Hz Number of Ways:2 Sensitivity (8 Ω):95.5 dB Maximum SPL:116 dB Horizontal Coverage:90° Vertical Coverage:90° |
| Technical Specifications | Nominal Impedance:8 Ω AES Power Handling:200 W Program Power Handling:400 W Peak Power Handling:600 W Transducer LF:1 x 8’’ driver with neodymium magnet Transducer HF:1 x 1.75’’ neodynium compression driver Enclosure Type:Bass-Reflex Crossover Type:Passive |
| Connector Specifications | Power Connector:2 x speakON NL4MP |
| Physical Specifications | Height:245 mm Width:391 mm Depth:318 mm Weight:9 kg Handles:2 Rigging:8 x M6 threaded inserts for optional flying brackets Rigging:1 x 35 mm pole socket Monitoring Angle:35° |
