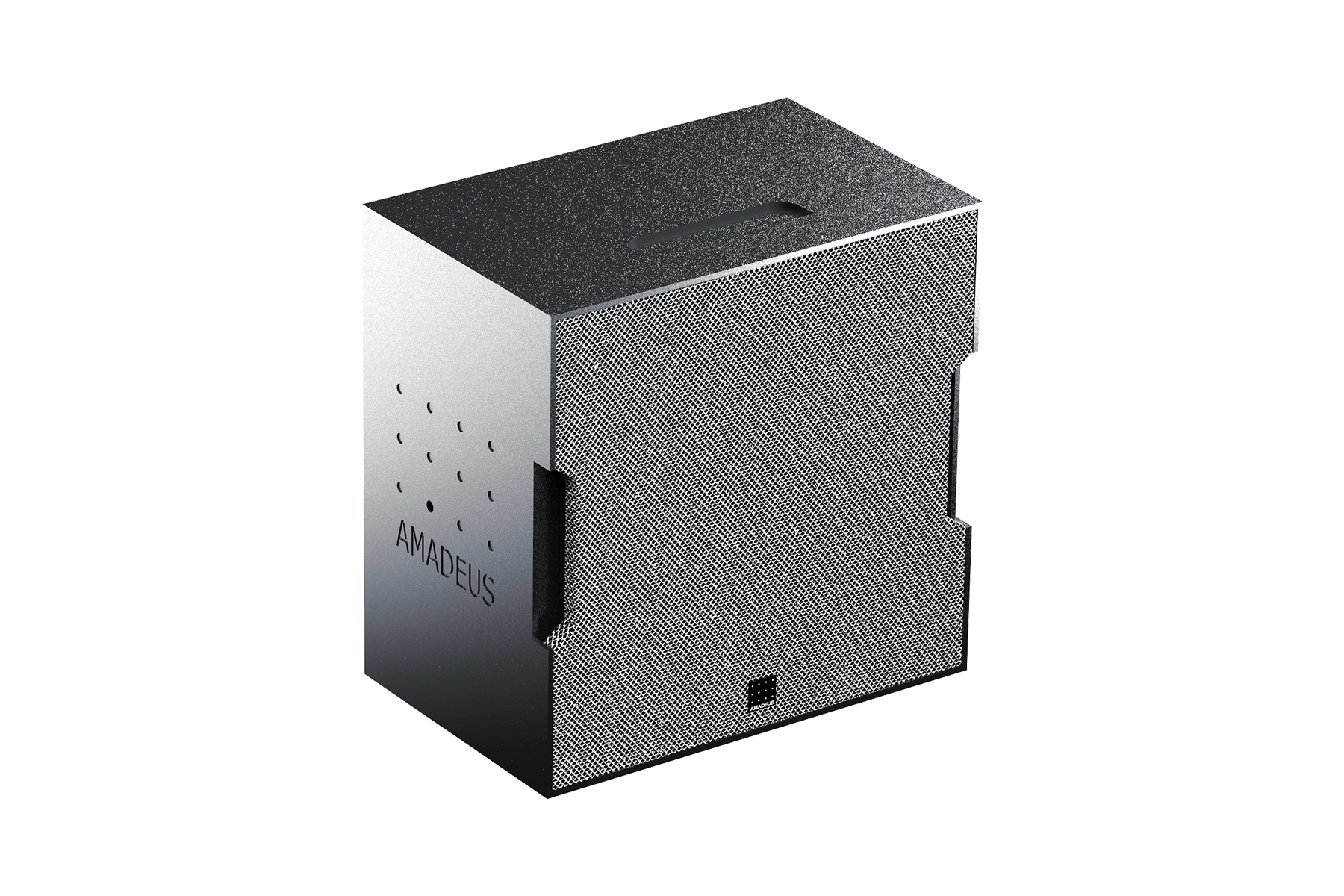

C 10
Learn more
| Acoustical Specifications | Amplitude linearity (± 3 dB): 75 Hz - 20000 Hz Operating frequency range (-6 dB): 65 Hz - 20000 Hz Cut-off frequencies (-10 dB): 57 Hz - 20000 Hz Number of ways: 2 Sensitivity: 96 dB Maximum SPL: 126 dB Horizontal coverage: 100° Vertical coverage: 100° |
| Technical Specifications | Nominal impedance: 8 Ω AES power handling: 400 W Program power handling: 800 W Peak power handling: 1000 W Transducer (LF): 1 x 10" Transducer (HF): 1 x 1.75" Enclosure type: Bass-Reflex Crossover type: Passive |
| Connector and Button Specifications | Input connectors (Analog): 1 x speakON NL4MP |
| Physical Specifications | Height: 336.0 mm Width: 336.0 mm Depth: 260.0 mm Weight: 13.0 kg Handles: 2 Rigging: 2 x M8 threaded inserts for optional U-Bracket Rigging: 2 x M8 threaded inserts for optional mounting adapter Standard colour codes for cabinet: 9005/9010/1013/7040/7030/5011 Standard colour codes for fabric: 9005/9006/9010/1035/1036 |
