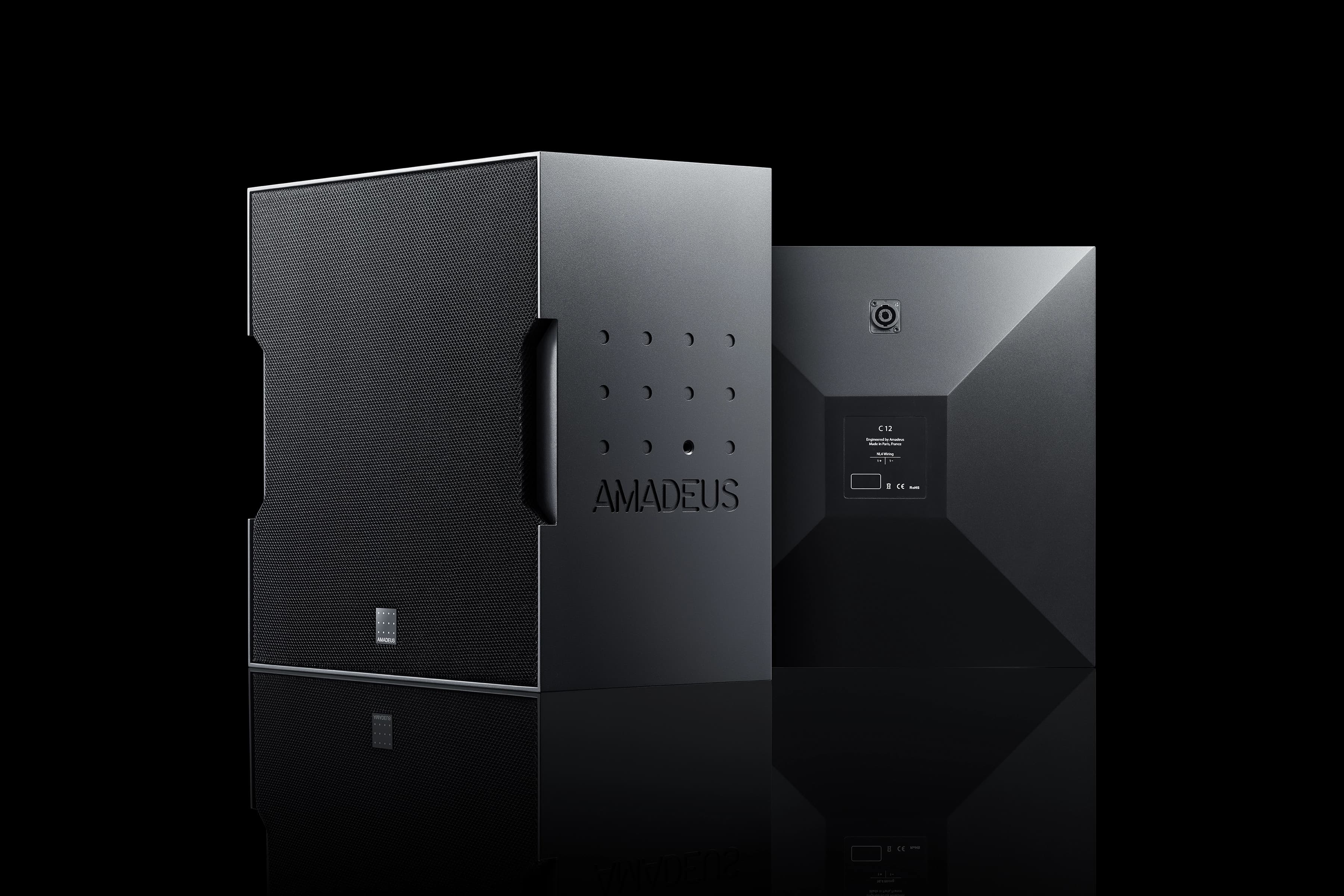

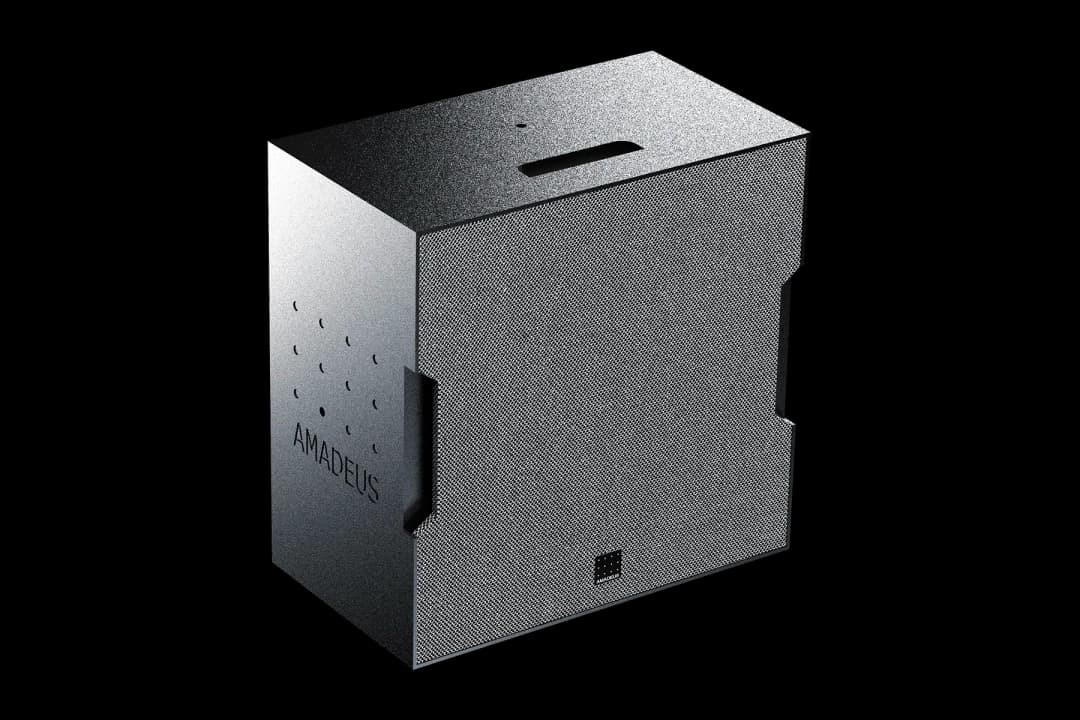

C 15
Learn more
Acoustical Specifications
| Amplitude linearity (± 3 dB) | 75 Hz - 20000 Hz |
| Operating frequency range (-6 dB) | 65 Hz - 20000 Hz |
| Cut-off frequencies (-10 dB) | 49 Hz - 20000 Hz |
| Number of ways | 3 |
| Sensitivity LF | 98 dB |
| Sensitivity MHF | 113 dB |
| Maximum SPL LF | 134 dB |
| Maximum SPL MHF | 141 dB |
| Horizontal coverage | 90° |
| Vertical coverage | 60° |
Technical Specifications
| Nominal impedance LF | 8 Ω |
| Nominal impedance MHF | 8 Ω |
| AES power handling LF | 1000 W |
| AES power handling MHF | 150 W |
| Program power handling LF | 2000 W |
| Program power handling MHF | 500 W |
| Peak power handling LF | 4000 W |
| Peak power handling MHF | 1000 W |
| Transducer (LF) | 1 x 15" |
| Transducer (MF) | 1 x 3.5" |
| Transducer (HF) | 1 x 1.75" |
| Enclosure type | Bass-Reflex |
| Crossover type | Active |
Connector and Button Specifications
| Input connectors (Analog) | 1 x speakON NL4MP |
Physical Specifications
| Height | 446.0 mm |
| Width | 446.0 mm |
| Depth | 312.0 mm |
| Weight | 20.0 kg |
| Handles | 2 |
| Rigging | 4 x M8 threaded inserts for optional U-Bracket |
| Rigging | 2 x M8 threaded inserts for optional mounting adapter |
| Standard colour codes for cabinet | 9005/9010/1013/7040/7030/5011 |
| Standard colour codes for fabric | 9005/9006/9010/1035/1036 |
