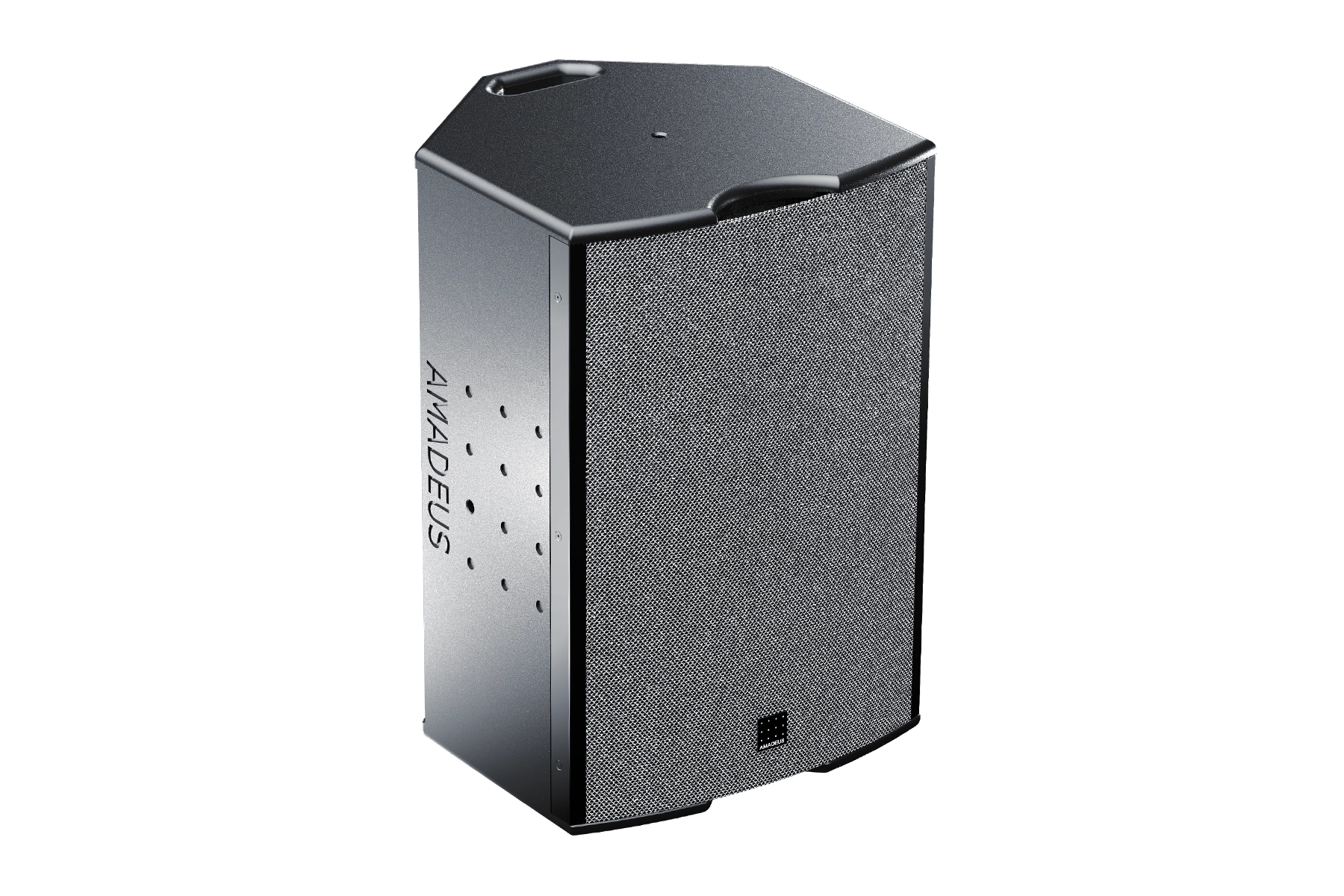

PMX 12 D
Learn more
Acoustical Specifications
| Amplitude linearity (± 3 dB) | 63 Hz - 20000 Hz |
| Operating frequency range (-6 dB) | 56 Hz - 20000 Hz |
| Cut-off frequencies (-10 dB) | 52 Hz - 20000 Hz |
| Number of ways | 2 |
| Sensitivity LF | 99 dB |
| Sensitivity MHF | 105 dB |
| Maximum SPL | 129 dB |
| Horizontal coverage | 80° |
| Vertical coverage | 80° |
| Presets | 99 user-definable presets |
Technical Specifications
| Nominal impedance LF | 8 Ω |
| Nominal impedance MHF | 8 Ω |
| AES power handling LF | 350 W |
| AES power handling MHF | 80 W |
| Program power handling LF | 700 W |
| Program power handling MHF | 160 W |
| Peak power handling LF | 980 W |
| Peak power handling MHF | 180 W |
| Transducer (LF) | 1 x 12" |
| Transducer (HF) | 1 x 3" |
| Enclosure type | Bass-Reflex |
| Crossover type | DSP |
Loudspeaker processing specifications
| Crossover | Multiple filter types (Butterworth, Linkwitz-Riley, Bell, High Shelf, Low Shelf, Notch, All Pass, Band Pass, High Pass, Low Pass) up to 24 dB / Oct. |
| Control and monitoring interface | Full configuration and real-time monitoring via PC, Mac and iPad |
Connector and Button Specifications
| Input connectors (Analog) | 1 x Male XLR (Pin 2+, Pin 3-), 1 x Female XLR (Pin 2+, Pin 3-) |
| Input connectors (AES/EBU) | 1 x Male XLR (Pin 2+, Pin 3-), 1 x Female XLR (Pin 2+, Pin 3-) |
| Input connectors (Dante) | 2 x RJ45 etherCON |
| Mains connectors | 1 x IEC 16 A |
| Buttons | Power, Up, Down |
| Encoder | Adjust, Set |
Physical Specifications
| Height | 551.0 mm |
| Width | 374.0 mm |
| Depth | 380.0 mm |
| Weight | 22.0 kg |
| Handles | 2 |
| Rigging | 3 x M8 threaded inserts for optional U-Brackets |
| Rigging | 1 x 35 mm pole socket |
| Standard colour codes for cabinet | 9005/9010/1013/7040/7030/5011 |
| Standard colour codes for fabric | 9005/9006/9010/1035/1036 |
