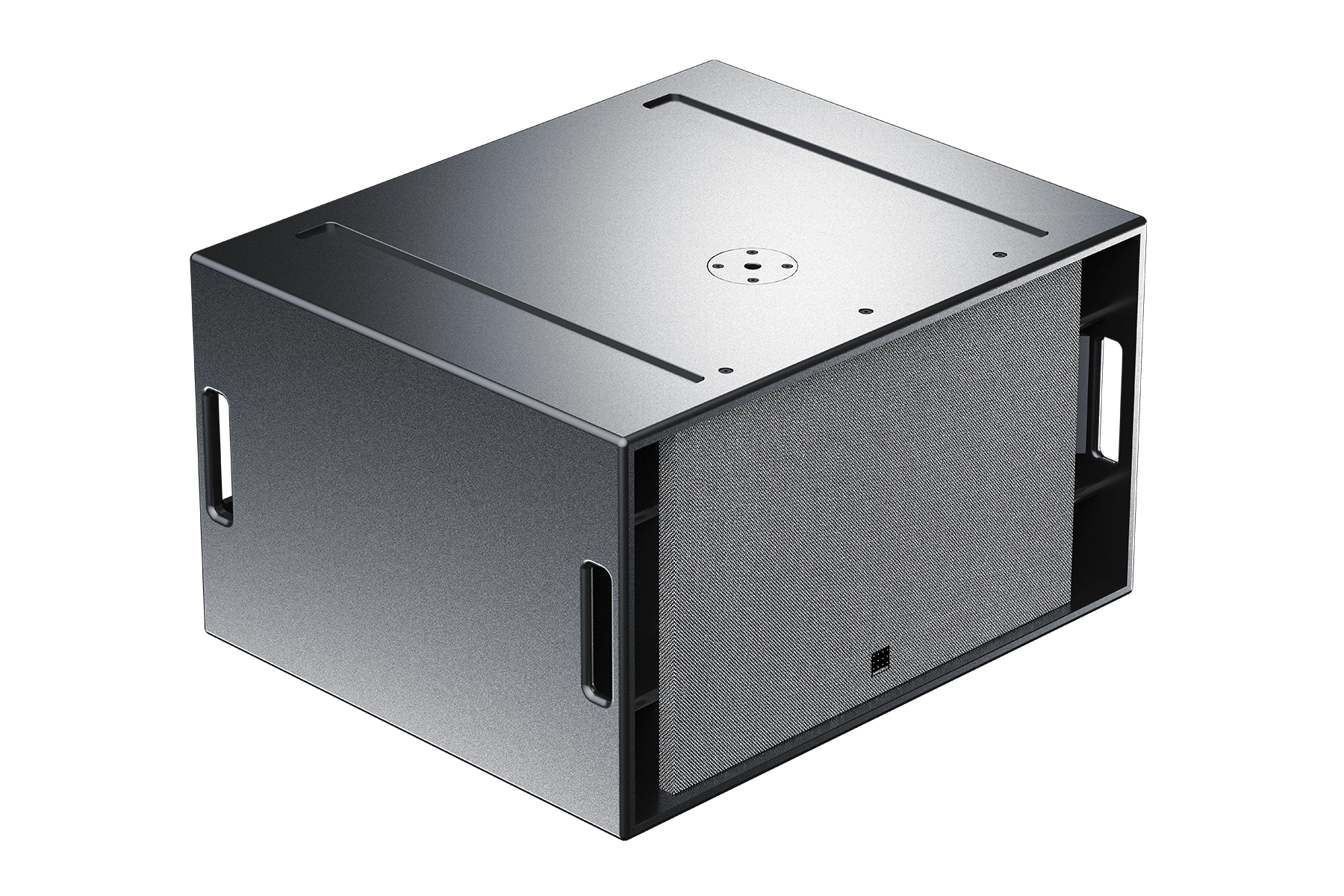

ML 18 X

ML 18 X

Learn more

Acoustical Specifications
Amplitude linearity (± 3 dB)35 Hz - 350 Hz
Operating frequency range (-6 dB)32 Hz - 350 Hz
Cut-off frequencies (-10 dB)29 Hz - 350 Hz
Number of ways1
Sensitivity100 dB
Maximum SPL134 dB
Horizontal coverage360°
Vertical coverage360°
Technical Specifications
Nominal impedance8 Ω
AES power handling1000 W
Program power handling2000 W
Peak power handling2800 W
Transducer (LF)1 x 18"
Enclosure typeBass-Reflex
Connector and Button Specifications
Input connectors (Analog)2 x speakON NL4MP
Physical Specifications
Height504.0 mm
Width873.0 mm
Depth723.0 mm
Weight67.0 kg
Handles4
Rigging1 x screw receptacle for satellite pole
Standard colour codes for cabinet9005/9010/1013/7040/7030/5011
Standard colour codes for fabric9005/9006/9010/1035/1036
